Overview

Features

  • -40°F standard outlet pressure dew point
  • -80°F optional outlet pressure dew point
  • 460 VAC / 3 Ph / 60 Hz electrical power supply
  • 60/150 psig minimun/maximum operating pressure
  • NEMA 4 indoor

Description

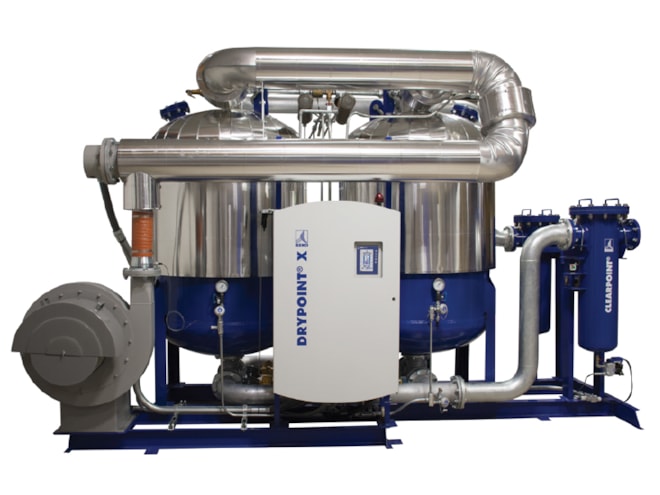

The BEKO DRYPOINT ACH Heated Purge Series use a desiccant material, which adsorbs the water vapor in the air stream. Heated regenerative type desiccant dryers utilize an external heater to regenerate the desiccant in one tower while the other tower dries the compressed air to a very low dew point.

The ACH features auto-adjusting purge rates and user presets for fully customizable operation. Engineered to be quickly and easily customized to suit any application with reduced lead times, and automatically calculates the most energy-efficient mode of operation at any given time.
