Overview

Features

  • 6 to 1500 SCFM capacities
  • 1/8" to 3" NPT connections
  • 232 PSI max working pressure
  • 0.8 PSIG typical pressure loss at rated capacity
  • Normally open float-operated automatic drain valve
  • ISO 12500-4: 2009

Description

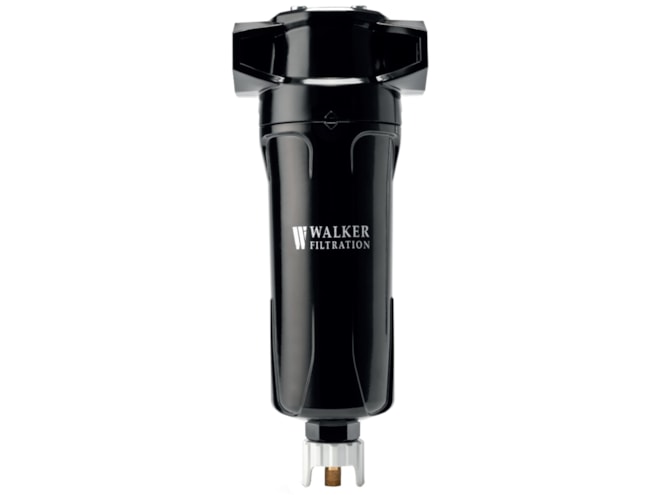

The Walker Filtration Alpha Series water separator uses centrifugal technology and a modern housing design to effectively eliminate up to 99% bulk water with low differential pressure. The centrifugal module is custom-engineered with special vanes that prevent low-efficiency points, while a vortex arrestor stops re-entrainment for excellent liquid removal even at low velocities. All Walker Filtration water separators are tested in compliance with ISO 12500-4: 2009.
