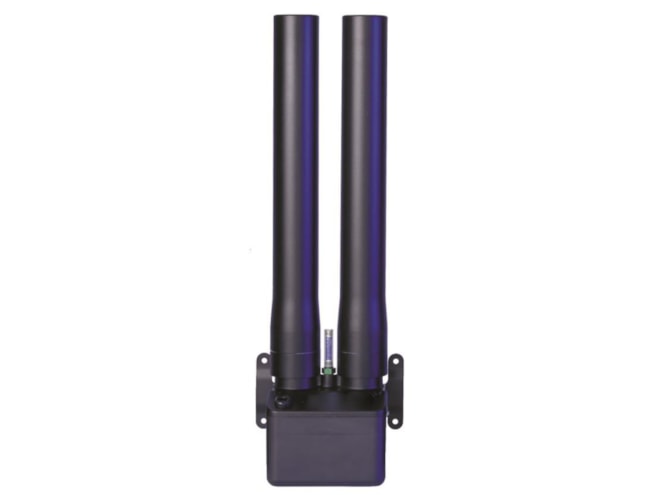

Altec AIR VSA Series Heatless Regenerative Desiccant Air Dryer

Heatless desiccant dryer with dual inlet/outlet ports, inlet flow rates up to 12 SCFM.

Altec AIR VSA Series Heatless Regenerative Desiccant Dryer - 12 SCFM Model
Altec AIR VSA Series Heatless Regenerative Desiccant Dryer - 8 SCFM Model
Altec AIR VSA Series Heatless Regenerative Desiccant Dryer - 5.8 SCFM Model
Altec AIR VSA Series Heatless Regenerative Desiccant Dryer - 2.8 SCFM Model

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

List Price: ${{ calcListPrice | formatCurrency }}

Starting Price: $1,438.20

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

2.8 to 12 SCFM options
120°F max inlet temperature
150 PSI max pressure
Solid-state timer with built-in memory
Fixed orifice purge control
Dual inlet and outlet port configurations
-40°F standard outlet dew point
120 and 240 VAC input voltages available
Optional moisture indicator

The Altec AIR VSA Series heatless regenerative desiccant dryer utilizes Pressure Swing Adsorption (PSA) technology. Compressed air is passed through the inlet to one desiccant tower where water vapor is removed. The dry air then continues to the outlet side of the manifold and out to the application. A portion of the dried air is expanded through an orifice and directed back through the offline desiccant tower where the accumulated moisture is purged. The solid-state timer and two solenoid valves reverse the process.
