Overview

Features

  • 1/8” to 1/2" connection size range
  • Rated ISO 8573-1 Class 3.2.1
  • Differential pressure indicators included:
    • Pop-up indicators on AD11-HR14 thru AD11-HR57
  • Automatic float drains for coalescing pre-filters
  • Manual Drains on particulate after-filters
  • Two different kits available:
    • 1 pre-filter and 1 after-filter
    • 2 pre-filters and 1 after-filter
  • Pressure regulator option available

Description

The Altec AIR Desiccant Air Dryer Filter Kit is a complete compressed air filter kit that takes the guesswork out of which filters are needed to protect your specific Altec AIR air dryer and any downstream processes from contaminants found in the air supply. These kits are matched to specific Altec AIR desiccant air dryers in flow, performance, and connection size to ensure the protection matches the requirements of the incoming compressed air as well as the outgoing air.

Kit Contents:

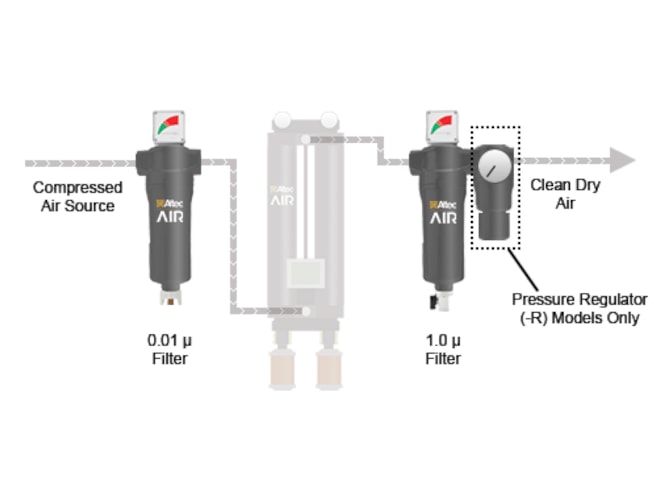

1 pre-filter and 1 after-filter kit:

  • XA grade - 0.01 micron coalescing pre-filter
  • X1 Grade - 1 micron particulate after-filter

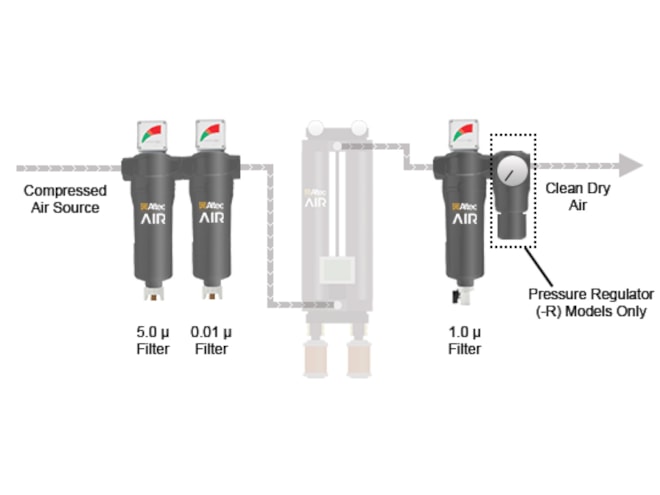

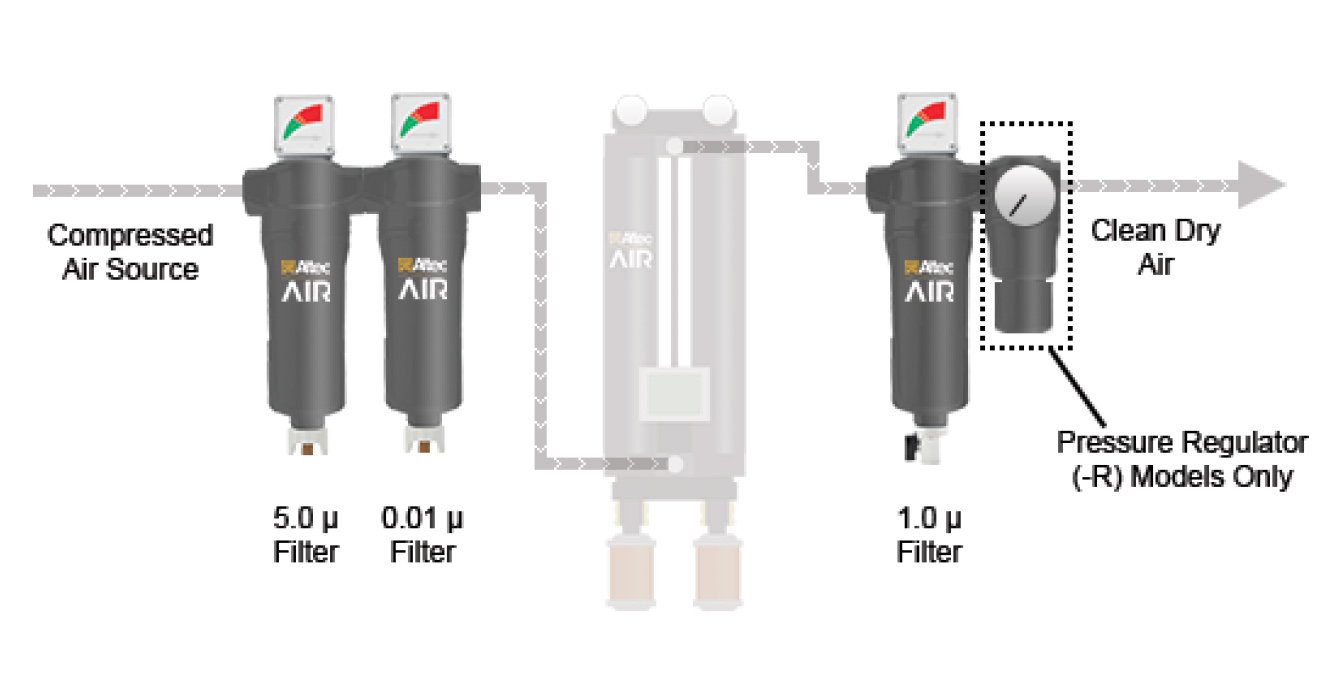

2 pre-filters and 1 after-filter kit:

  • X5 grade - 5 micron coalescing pre-filter
  • XA grade - 0.01 micron coalescing pre-filter
  • X1 Grade - 1 micron particulate after-filter
