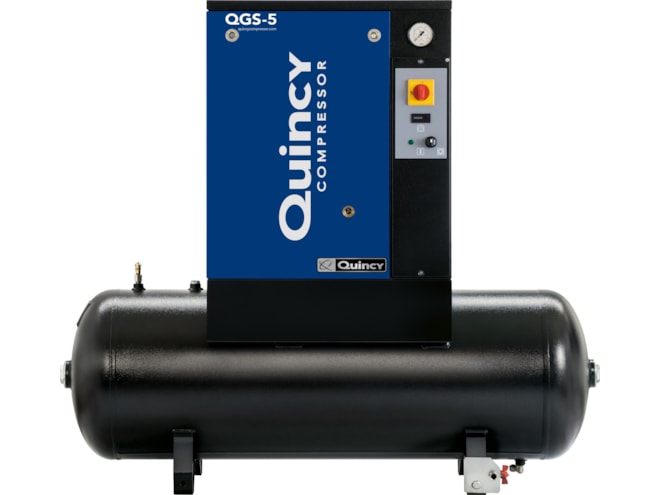

Quincy Compressor QGS 5 TM-3, 5 HP Rotary Screw Air Compressor

60 gallon tank mount, 18.1 CFM, 150 PSI, 208-230/460/3/60. View other configurations.

View 1 Product Review

Features

  • 18.1 CFM capacity
  • 150 psig pressure rating
  • Starter
    • DOL
  • Voltage
    • 208-230/460/3/60 (tri-voltage)
  • Low sound enclosure
View Other Configurations

Quincy’s QGS 5 TM-3 rotary screw compressor is designed for small to medium-sized applications ranging from paint booths and component assembly to long-running industrial installations. The Quincy Compressor QGS Series rotary screw air compressor is available from 5 to 150 HP and can be used in a wide range of applications. The QGS series from 5 to 30 HP are belt driven and include an auto tensioning device that provides ease of maintenance and a long belt life, while the 40 to 100 HP compressors come with a gear driven transmission. The Quincy Compressor QGS Series comes equipped with start/stop controls, an Infologic 2 controller, or an Airlogic 2 Touch controller depending on the selected horsepower. All models feature a TEFC drive motor, air-cooled after cooler, low sound enclosure, and 8,000 hours of factory-filled QuinSyn-Plus fluid, with options for a horizontal air receiver and a mounted 39°F dewpoint refrigerated air dryer.

Applications

  • Oil and gas
  • Construction
  • Manufacturing
  • HVAC
  • Automotive
  • Chemical
  • Agriculture and mining
  • Food and beverage
  • Pharmaceutical
