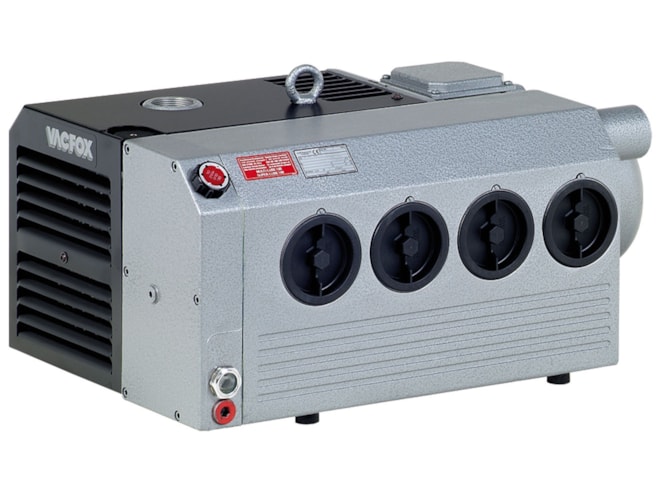

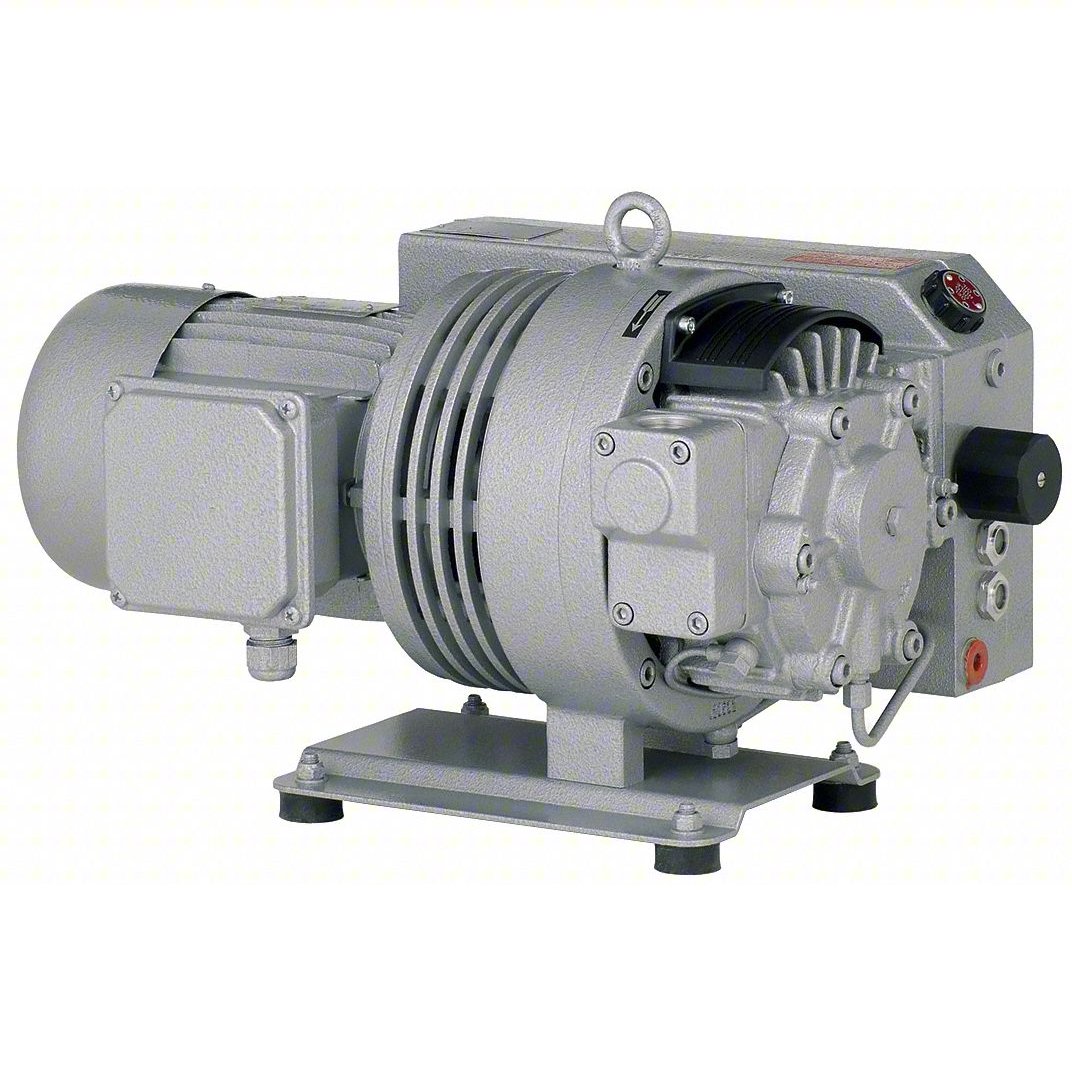

Elmo Rietschle VC-Series Rotary Vane Pump

Oil lubricated vacuum pump capable of maintaining vacuum levels as low as 29.62 inHg and max flow rate up to 903 CFM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $5,899.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 1.5 to 40 HP options available
  • 17.6 to 903 CFM capacities
  • Oil flooded rotary vane vacuum pump
  • Flange motor
  • Oil/air heat exchanger
  • Included with models 7.5 HP and up:
    • Fine mesh filter
    • Vacuum non-return valve
    • Gas ballast valve
    • Protection cover
    • Oil separator

The Elmo Rietschle VC-Series Rotary Vane Pump utilizes centrifugal force to create vacuum. With nominal capacities ranging from 17.6 CFM all the way up to 903 CFM and horsepower options from 1.5 to 40 HP, the VC-Series pumps have the ability to cover a wide range of industrial needs.

Applications:

  • Environmental engineering: aeration, drying, dust extraction systems
  • Food processing: bottling and filling machines, cutting machines, vacuum packing machines
  • Industrial applications: drying systems, dust extraction systems, industrial furnaces, vacuum hold down
  • Packaging industry: centralized vacuum system, packaging machines
  • Pneumatic conveying woodworking industry: dust extraction systems, vacuum hold down
