Overview

Features

  • 65 to 650 SFPS flow rate
  • 0 to 250 PSIG pressure range
  • 2 to 20" pipe sizes
  • -40 to 302°F temperature range
  • Gas types:
    • Air (dry and saturated)
    • Nitrogen
    • Oxygen
    • Vacuum
  • Outputs:
    • RS485 (Modbus RTU) digital
    • 4-20 mA analog
  • 15" probe length
  • 12-24 VDC
  • CE, UL/CUL approvals

Description

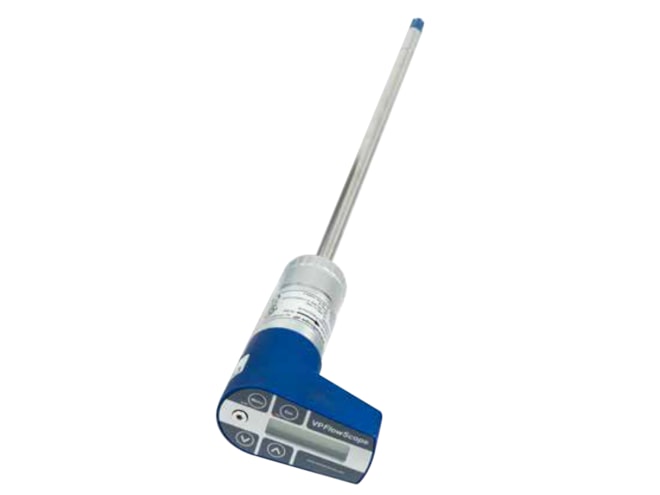

The VPInstruments VPFlowScope DP Flow Meter measures mass flow, temperature, and pressure simultaneously and is optimized for hot, saturated compressed air measurements. The design of this differential pressure flow meter for wet air has an LCD display that provides real-time information on the dP measurement. In combination with the built-in data logger, this enables you to make recordings for certain periods.
