Overview

Features

  • IP 54 protection rating
  • Class H insulation 1.15 service factor
  • Performance tested ANSI/AMCA210-85
  • 40°C ambient
  • 2" NPT inlet and outlet
  • 155 to 165 SCFM capacity rate
  • Non-pulsating design
  • Straddled mounted impeller design

Description

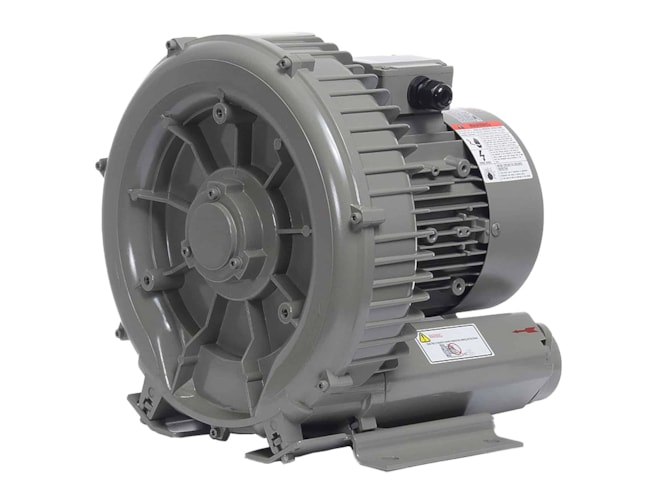

The All-Star RBH4 Regenerative Blower Series is a series designed with a 2" NPT inlet and outlet and capable of delivering both pressure and vacuum. The oil-free, non-pulsating design allows for a clean and odor-free air supply, making it ideal for sensitive applications such as the medical and food industries. The straddle mounted impeller designs helps maintain a smooth operation, while the clean filtered air supply prevents contamination and debris.

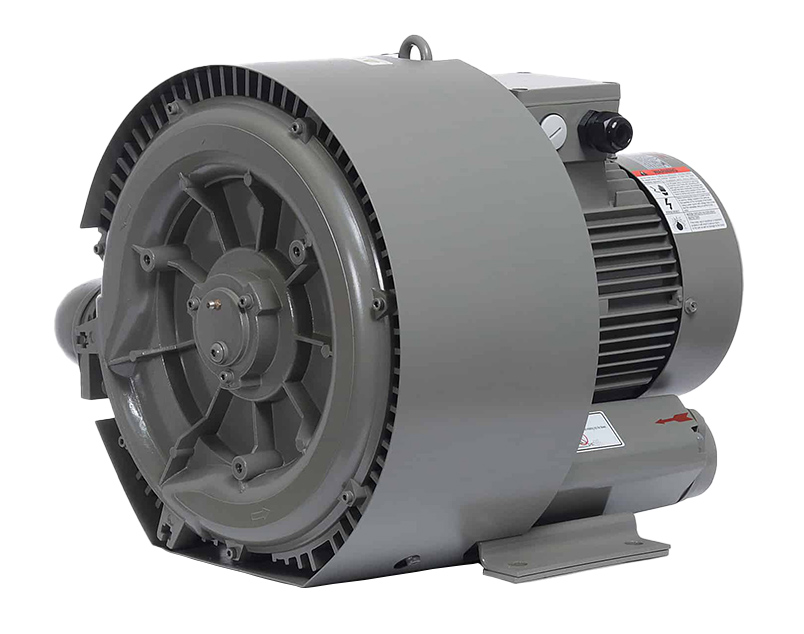

The RBH4 can come either single stage or two stage, as well as options for a single phase or three phase motor. Additionally, there are even options for a motorless regenerative blower. The power range goes up to 6.1 HP, and the capacity rate is 155 to 165 SCFM, depending on configuration.
