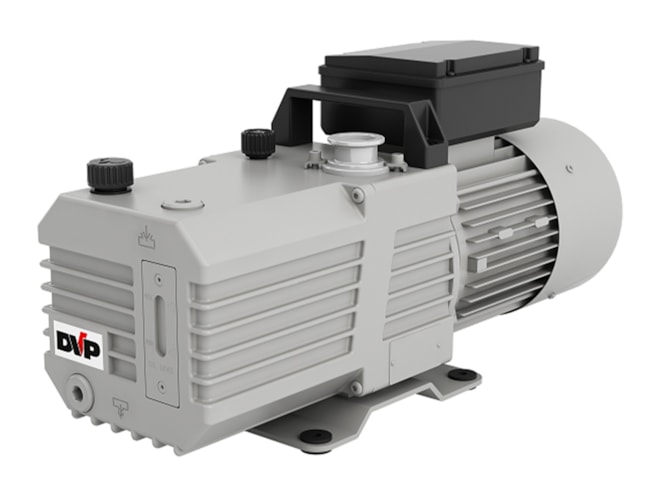

DVP DC Series Lubricated High Vacuum Pump

Name: DVP DC Series Lubricated High Vacuum Pump
Price: 4646.35 USD
Availability: BackOrder

Two stage pump with vacuum down to 0.004 Torr and up to 10 CFM capacity.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

Starting Price: $4,646.35

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

3.8, 5.7, and 10 CFM nominal capacity options
0.9 HP
Thermal protector
Gas Ballast
Handle for transport
Shock mounts
Pack of SW100 oil
Hydraulic non-return system
Handle for transport

The DVP DC Series Lubricated High Vacuum Pump features high reliability, vibration-free, low noise level, and is easy to maintain, making it suitable for laboratories, research institutes, and universities. A coupling drive connecting the motor and pump ensures reliable operation, long life, and easy maintenance. The DC Series pumps are ideal for use as a backing pump on ultra-high vacuum units.

The operating principle of the DC Series is similar to lubricated rotary vane vacuum pumps. However, the stator is immersed in the lubrification oil which also seals the air loss. The pressure levels reached by this type of pump are higher than other rotary vane pumps. These pumps are equipped with a gas ballast system to avoid the condensation of the water vapor.
