Overview

Features

  • Configurations:
    • Simplex: 2 to 25 HP, 11 to 107 CFM at 100 PSI
    • Duplex: 3 to 50 HP, 16.8 to 214 CFM at 100 PSI
  • Splash lubricated
  • Belt driven with a large flywheel
  • Directional air shroud
  • Enclosed heavy-duty belt guard
  • 60, 80, 120, and 240 gallon ASME air receiver tanks
  • Large canister intake filter with replaceable filter elements
  • Manual tank drain
  • Tank gauge included
  • Pressure relief safety valve
  • Auto Start/Stop control with pressure unloader set at 75 to 100 PSI
  • Alternator and magnetic starter standard on duplex models
  • Filled with Jenny Synthetic Blue Compressor Pump Oil

Description

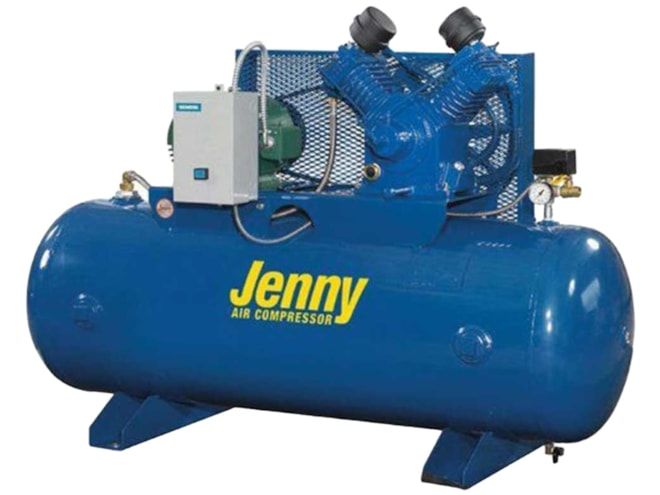

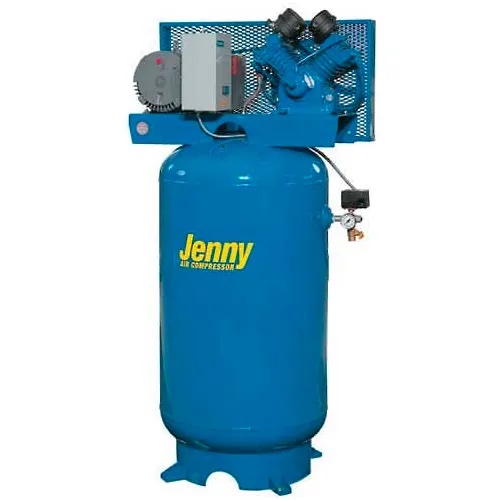

The Jenny Two-Stage Climate Control Piston Air Compressor is a heavy-duty cast iron compressor pump mounted to an ASME air receiver tank. It is available in 2 to 25 HP (simplex) and 3 to 50 HP (duplex) configurations with capacities up to 214 CFM at 100 PSI. The splash-lubricated pump is belt-driven with a large flywheel for extra cooling and easier start-up. Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil for peak performance.
