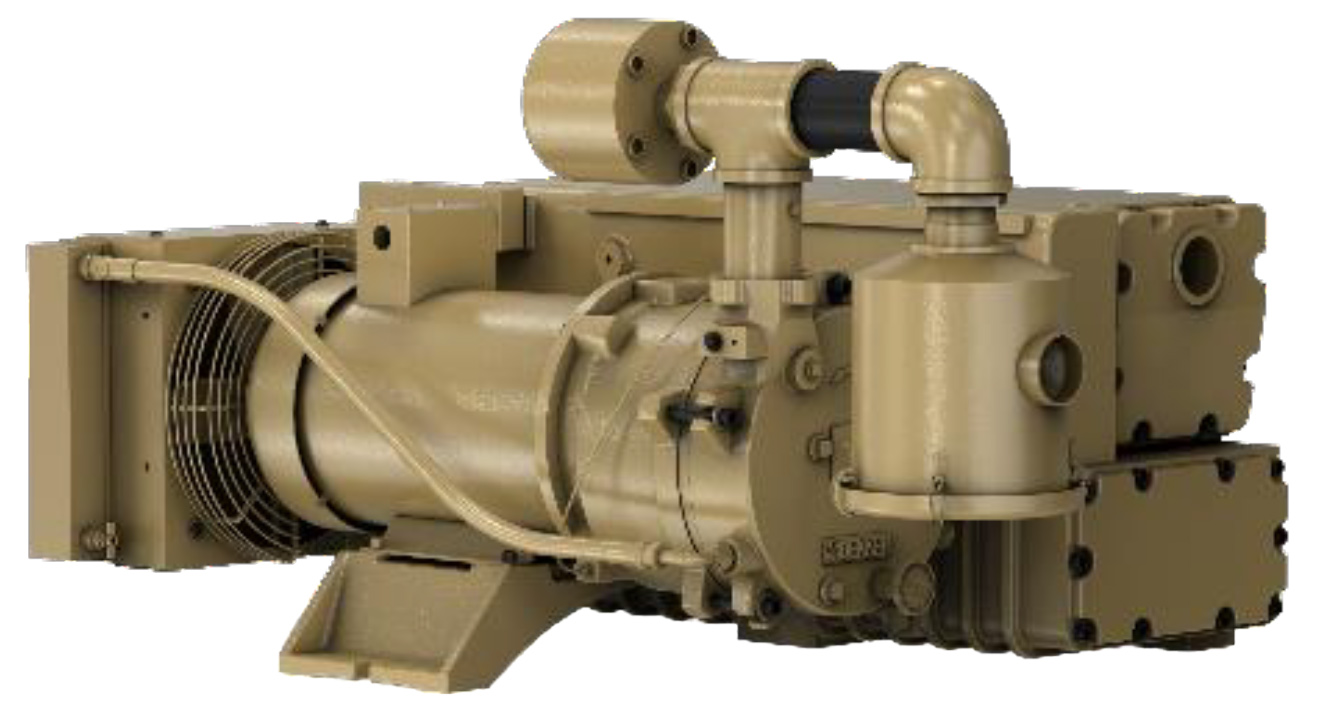

Dekker Vmax Series Compact Liquid Ring Oil-Sealed Vacuum Pump System

Compact and heavy duty system with Titan Series single-stage liquid ring vacuum pump.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $8,081.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Titan Series single-stage liquid ring vacuum pump:
    • Cast iron casing and portplate
    • Ductile iron or 316 stainless steel impeller
    • Viton mechanical shaft seal
  • 29" HgV max vacuum
  • 230/460V, 3 phase motors
  • Discharge separator-reservoir with level sight gauge
  • Back-pressure gauge and temperature gauge
    • Stainless steel models also include vacuum gauge
  • Air-cooled, heat exchanger package with fan/motor/guard
  • Woodworking application system includes inlet filter and vacuum relief valve (Ductile iron only)
  • Inlet check valve
  • Filled with Vmaxol seal fluid

The Dekker Vmax Series Compact Liquid Ring Oil-Sealed Vacuum Pump System offers a performance range of 35 to 465 ACFM. Titan Series liquid ring vacuum pumps back this motor-mounted system and is available with ductile iron or 316 stainless steel impellers, this system generates up to 29" HgV of vacuum. The pumps meet the stringent ISO 9001 quality control standards, assuring unparalleled reliability in many industrial applications.

The ductile iron impeller models are available in a woodworking application-specific configuration. This system adds an inlet filter and vacuum relief valve for better performance in wood shop environments.
