Overview

Features

  • Weight: 125lbs
  • Maximum PSI: 175 PSI
  • 2 cylinders
  • Low pressure bore: 4.75" (120mm)
  • High pressure bore: 2.50" (64mm)
  • Stroke: 3.00" (76mm)
  • HP: 6.5 to 11.0 HP
  • RPM: 500 to 800 RPM

Description

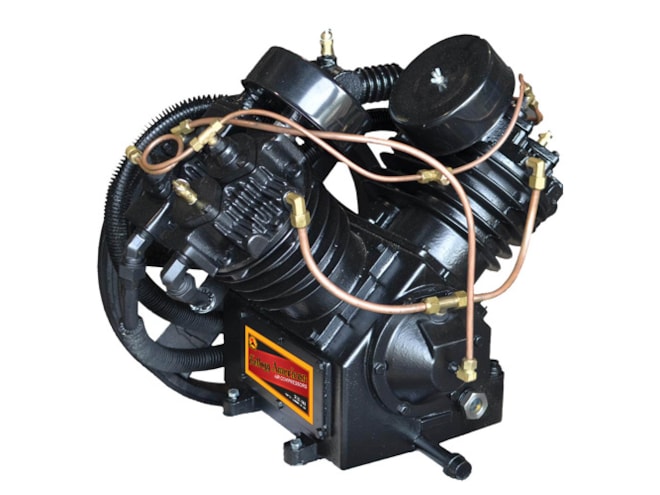

The Kellogg-American K452 two stage air compressor pumps are built using solid modeling creation and precision CNC machining, honing, and grinding. They are available with head unloaders for dual control operation and use B10 bearings designed with a life of over 8000 hours. They are capable of running 100% duty cycles required by heavy duty, industrial applications. The pistons are forged aluminum alloy (low pressure) and precision cast iron (high pressure). Our crankcases are precision machined iron, with CNC ground bearing journals. The pumps contains Swedish steel valves that are stress relieved and assembled with lapped discs to provide a long life.
