Midwest-Control Tank Kit - Safety Valve, LF CBM Gauge, and Ball Valve

1/2" Safety Valve, 200 PSI, 358 SCFM, 2.5" LF CBM Gauge 300 PSI, and 1/2" FPT Ball Valve FxF.

$45.65
Request Quick Quote

View Company Reviews
Part Number
  • TKC200-Q300FC
Highlights...

Features

  • 1/2" Safety Valve
  • 200 PSI
  • 358 SCFM
  • 2.5" LF CBM Gauge 300 PSI
  • 1/2" FPT Ball Valve FxF

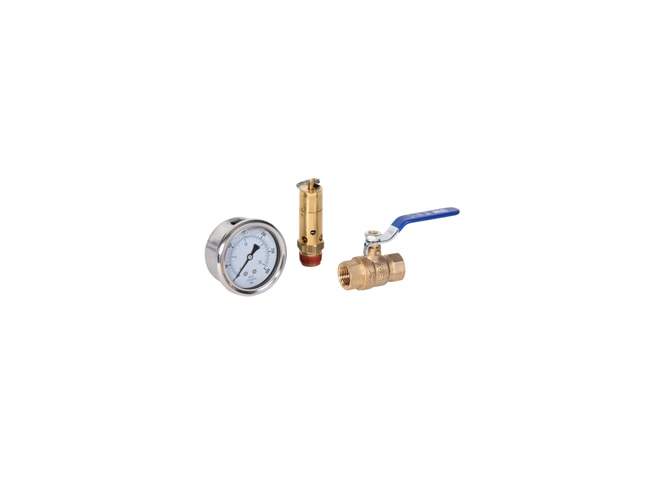

Custom built tank kits for your specific application. This kit contains a safety valve, gauge, and ball valve.

Safety Valve:

  • Set Pressure Tolerances: ± 3% of Set Pressure
  • Maximum Temperature: 250 F
  • Construction: All Brass With Zinc Plated Music Wire Spring
  • Resilient Silicone Rubber Pad Ensures Valve is Bubble Tight to Within 10% of Set Pressure
  • Stamped With the UV and NB Symbols
  • Loc-Tite Vibra Seal Standard

Liquid Filled Gauge

  • Built-In Snubber Dampens the Effect of Pulsation and Vibration
  • Stainless Steel Case and Bezel
  • Copper Alloy Wetted Parts
  • Polycarbonate Lens
  • Liquid Filled
  • Accuracy : 2-1-2% of Span ASME B40.1 Grade A
  • Dual Scale: PSI/Bar (x 100=kPa) Standard
  • Ambient Temperature: Filled: 30 F to 160 F
  • Design Meets or Exceeds ASME B40.100 Pressure Gauge Standard

Ball Valve

  • UL, CSA/CUS and FM Approved
  • 600 PSI CWP 150 WSP Service
  • Suitable for Vacuum Service to 29.9" Hg
  • Full Port
  • Temperature Range: -20 F to 365 F
  • Forged Brass Body
  • Blow Out Proof Brass Stem
  • Chrome-Plated Brass Ball
  • PTFE Ball Seat and Packing Nut
  • Steel Handle w/Vinyl Grip
  • ISO Registered Factory
  • MSS SP-110 Approved
  • RoHS Compliant
