Overview

Features

  • 55 to 3000 SCFM capacity
  • Connections:
    • 55 to 1200 CFM: 3/4" to 3" NPT
    • 1500 to 3000 CFM: 4" ANSI Flange
  • Pressure rating:
    • 55 to 1500 SCFM: 165 PSIG
    • 2000 to 3000 SCFM: 150 PSIG
  • 120/1/60 voltage
  • -40°F dew point
  • Activated alumina desiccant

Description

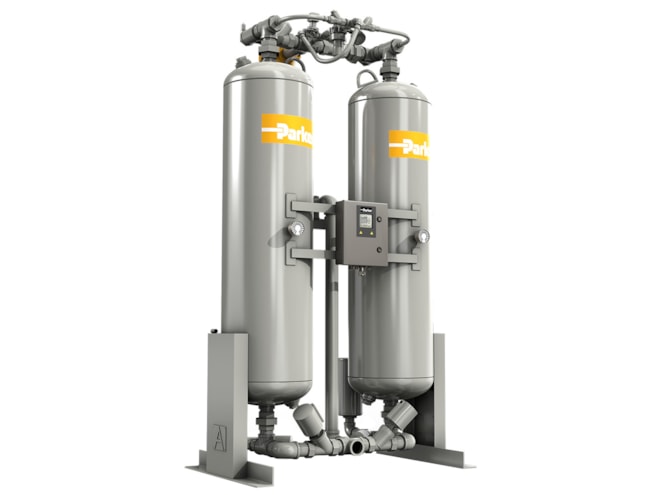

The Parker NextGen TW Series Heatless Twin Tower Desiccant Air Dryer eliminates water vapor from compressed air by utilizing the Pressure Swing Adsorption method. By passing saturated compressed air over a desiccant bed, a standard pressure dewpoint of -40°F (-40°C) is achieved. The desiccant bed is rejuvenated using dry purge air from the system.
