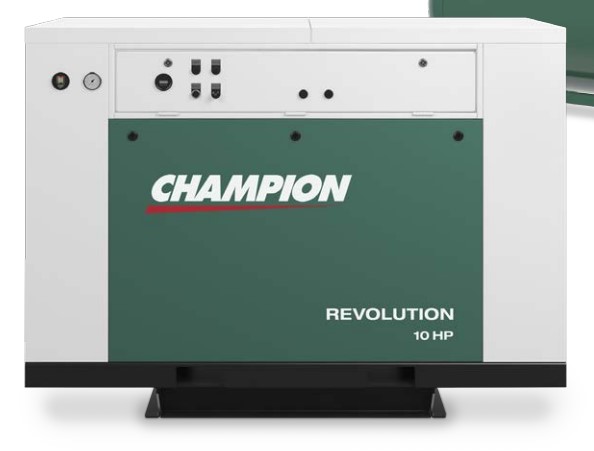

Champion Revolution HQ Series Two-Stage Piston Air Compressor

Splash lubricated reciprocating air compressor, R-Series compressor pump, quiet enclosure.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $6,736.83
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 5, 7.5, 10, and 15 HP
  • 175 PSI pressure rating
  • NEMA 1 Mounted Control Panel with hour meter and on/off switch
  • Champion R-Series compressor pump
  • Low Oil Level Monitor
  • ASME inter-stage pressure relief valve for protection
  • ODP NEMA 1760 RPM electric motor
  • 10 Micron industrial grade intake filter
  • ASME coded receiver
  • 0 to 300 PSIG air pressure gauge on tank mounted models
  • Available voltages:
    • Single phase: 208-230
    • Three phase: 208/230/460/575

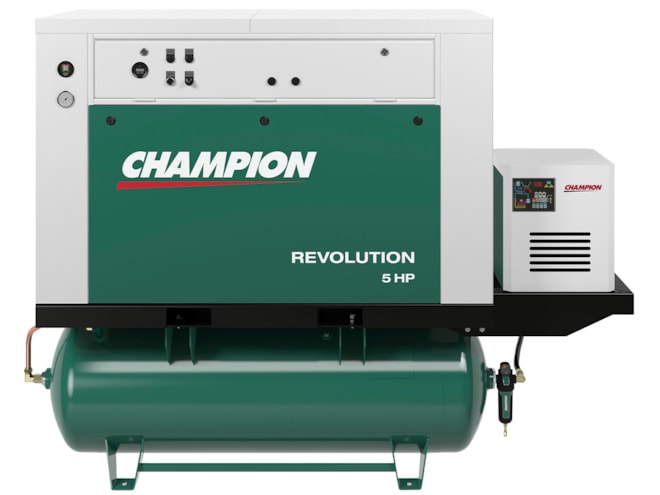

  • Airstation models available
    • Mounted X Series dryer
    • X Series pre-filter
    • 3-way bypass valve

The Champion Revolution Series Two-Stage Piston Air Compressor is designed with a quiet enclosure that uses 2” foam on external panels. Its R-Series compressor pump combines reliability and high performance into an enclosure that offers optimum cooling and low sound levels. This makes it ideal for applications requiring the technology of a reciprocating compressor but also lower sound levels, with dBA levels as low as 62 dBA.
