Overview

Features

  • 50 to 2400 CFM capacities available
  • Constructed of all non-corrosive materials
  • Gravity activation
  • Removable access lid
  • Translucent oil container collects de-emulsified oil
  • Red flow indicator (AZ15 to AZ240 models)
  • Sample and reference jars (AZ15 to AZ240 models)
  • No electrical connection required

Description

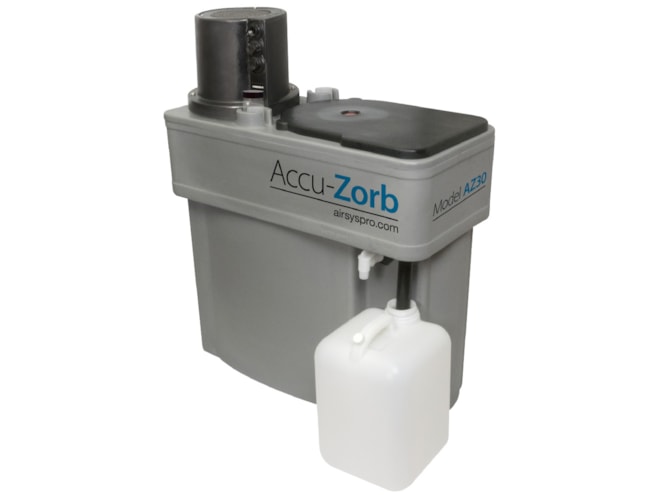

The Air System Products Accu-Zorb Series Oil Water Separator uses multi-stage separation technology to remove lubricating oils from condensate streams. It first collects the sediment in a chamber to prevent rust, dirt, and scale from entering the main reservoir, which provides sufficient residence time for the oil to coagulate and float to the surface. Next, the pre-adsorption chamber removes the remaining oils in the solution or migrated to that chamber. Finally, the carbon beds ensure that the condensate meets or exceeds discharge limits.
