Overview

Features

  • Discharge rates of 3 or 24 gal/h
  • Maximum working pressures:
    • 300 PSIG
    • 500 PSIG
  • 150°F maximum inlet temperature
  • Carbon steel or stainless steel models available
  • Stainless steel float
  • Resilient pilot valve seat
  • Stainless Steel mechanisms - impervious to synthetic lubricants

Description

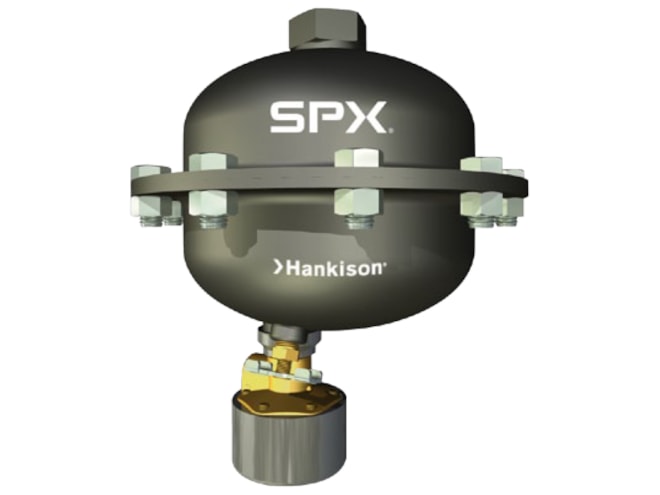

The Hankison Trip-L-Trap Series Mechanical Drain automatically discharges water, oil and oil/water emulsions from your compressed air system. The float-activated pilot valve operates on demand allowing an air-powered piston to open a large discharge port and is level activated.
