Overview

Features

  • 150 PSIG max operating pressure
  • 100% of particles 3 microns and larger
  • 99.98% of particles 0.1 micron and larger
  • 0.5 ppm with maximum liquid content after filtration
  • 1000 ppm maximum inlet liquid loading
  • 0.5 to 1 PSI low pressure drop
  • 8 to 15 year element life

Description

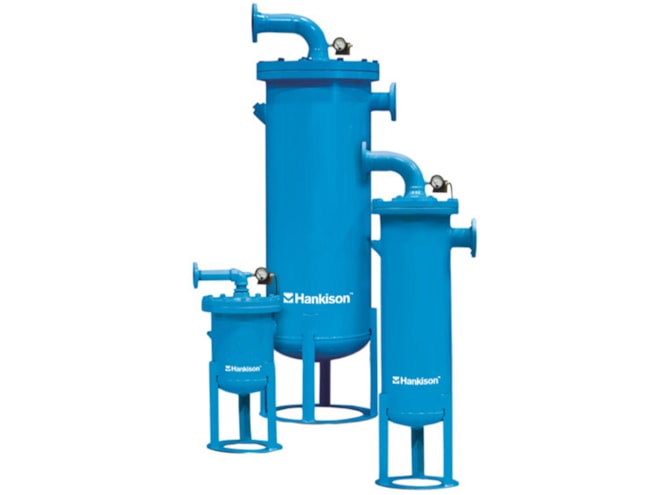

The Hankison M Series Mist Eliminator reduces energy costs by efficiently removing oil, water, and solid particles from compressed air systems. The compressed air flows through a rotatable flanged inlet assembly designed for easy element access and then through a loosely packed bed of highly engineered, water-resistant glass fibers. The fibers capture the water droplets, oil aerosols, and solid particles through direct interception, inertial impaction, and diffusion resulting from the forces of Brownian motion. The captured liquids and aerosols coalesce into larger droplets and are removed through gravity at the bottom of the vessel.
