Hankison HF Series Filter

20 to 21250 SCFM filters, available with 7 different types of filter elements for a wide range of applications.

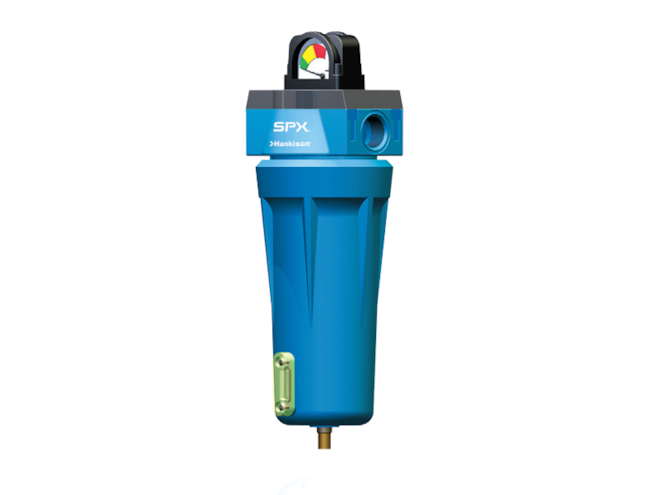

Hankison HF Series Filter with Differential Pressure Indicator

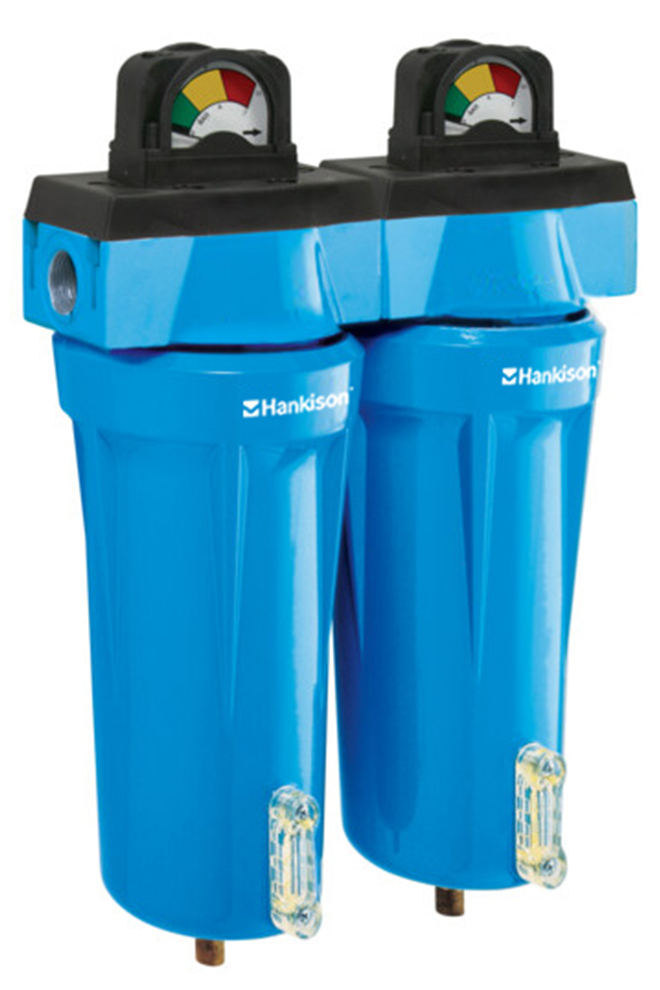

Hankison HF Series Filter (Image Shows Duplex Filter Setup)

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

List Price: ${{ calcListPrice | formatCurrency }}

Starting Price: $282.15

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

By Hankison
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Some models in stock. View available part numbers.
Local Service Available on All Brands

Features

20 to 21250 SCFM flow rates available
150°F max inlet temperature
Standard or ASME pressure vessel housing depending on model
Push-on elements
- Grade 11 - Moisture Separator
- Grade 9 - Separator/Filter
- Grade 7 - General Purpose Air Line Filter
- Grade 6 - Dry Particulate Air Line Filter
- Grade 5 - High-Efficiency Oil Removal Filter
- Grade 3 - Ultra High-Efficiency Oil Removal Filter
- Grade 1 - Oil Vapor Removal Filter
Piston type element to housing seal
Corrosion-resistant cores
Silicone free

The Hankison HF Series Filter removes contaminants such as dust, dirt, rust, and pipe scale, as well as compressor lubricants (mineral or synthetic), condensed water droplets, acidic condensates, and oil and hydrocarbon vapors. This improves the quality of compressed air and reduces operating costs for applications such as plant air, instrument air, and medical air.
