Overview

Features

  • ≤.003 mg/m3 attainable residual oil at outlet
  • 41°F / 131°F min/max inlet air temperature
  • Max operating pressures:
    • 35 to 425 SCFM: 232 PSIG
    • 10 SCFM and 705 SCFM: 160 PSIG
  • Optional 1 μm pre-filter and bypass valve available
  • ISO 8573-1, Class 1 certified

Description

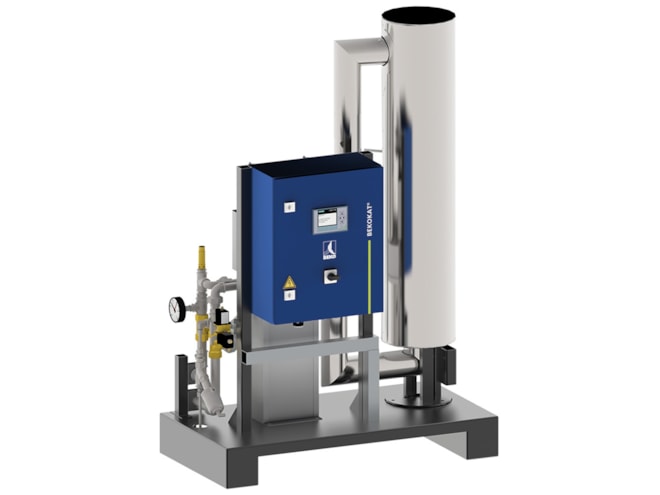

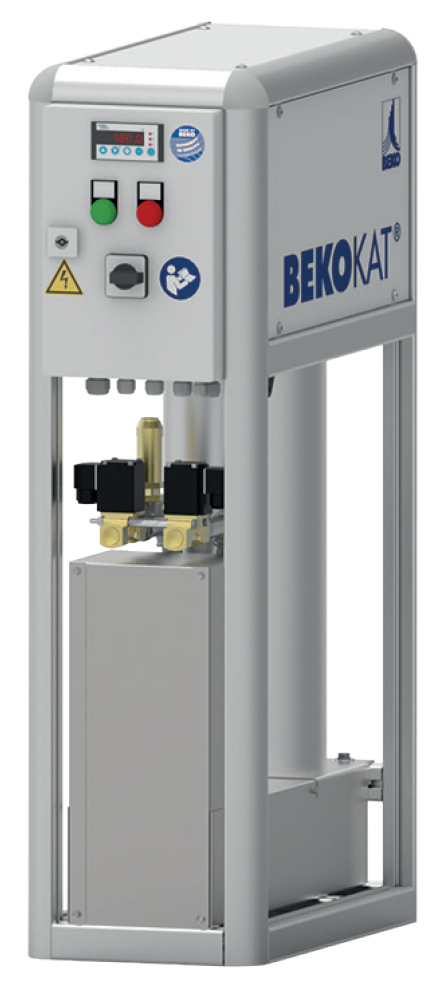

The BEKO Technologies BEKOKAT Catalytic Conversion System converts hydrocarbons into carbon dioxide and water by total oxidation on the catalyst. As a result, the system consistently produces oil-free compressed air with a residual oil content of only 0.003 mg/m³, which exceeds the residual oil content of 0.01 mg/m³ specified in Class 1. This level of purity is required in demanding production processes such as the food, pharmaceutical, automotive, and electronics industries.

The BEKOKAT is typically installed as a stand-alone solution behind the compressors or on the consumption point installed.
