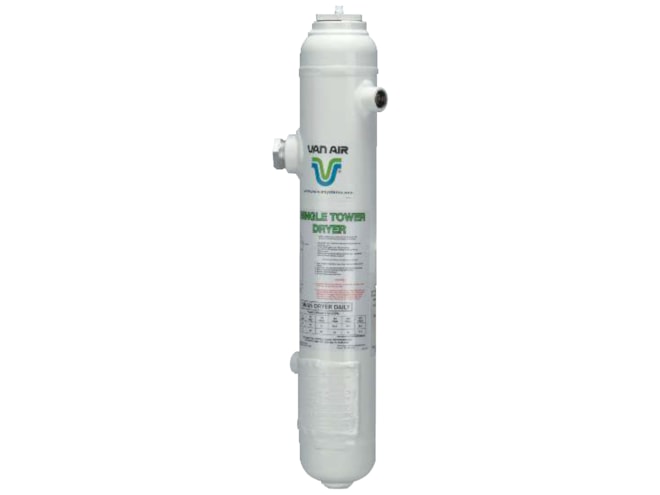

Van Air Systems ID35, 35 CFM In-Line Desiccant Air Dryer

1" NPT, -40ºF, 250 PSIG, Sacrificial bed of loose silica gel, Sight window included. View other configurations.

Features

  • 35 CFM capacity at 100 PSIG
  • 250 PSIG
  • Steel, ASME Sec. VIII, Div. I housing
  • Sight window included
  • -40ºF pressure dew point
  • No power or moving parts
View Other Configurations

The Van Air Systems ID35, 35 CFM In-Line Desiccant Air Dryer consists of a sacrificial bed of loose silica gel desiccant that can be drained through a plug at the bottom of the vessel. The ID35 has an extended service interval for higher flow applications.

Applications

  • Instrument gas dehydration
  • Single point of use
  • Control gas
  • Fuel gas
  • Low and intermittent flows
  • Low flow process protection
