Overview

Features

  • Rated to 39ºF or 50ºF dewpoint
  • Air inlet up to 180ºF (82ºC)
  • 232 PSI
  • Refrigerant Type:
    • R404A
  • Hot gas bypass valve
  • No air loss demand drain
  • Plate and frame heat exchanger with integrated air-to-air HX
  • Integrated water separator
  • cULus listed
  • Durable powder-coated cabinet

Description

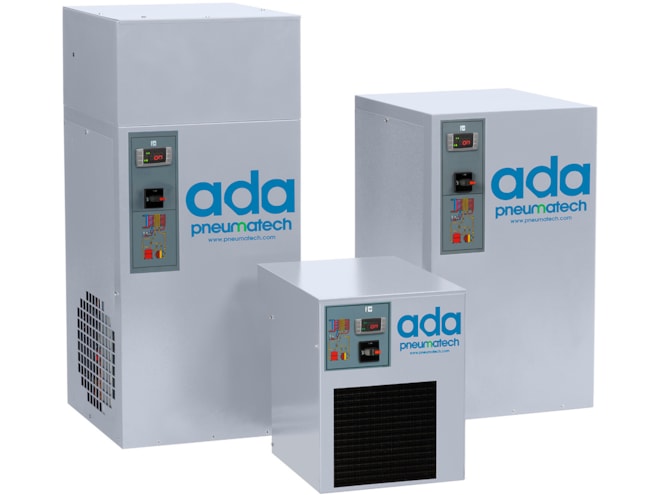

The Pneumatech ADA-100 non-cycling high temperature refrigerated air dryer features a patented design with a built-in aftercooler/condenser with cycling fan, and an automatic drain with a solid-state, programmable timer and manual override with particle strainer. It eliminates water, oil, and dirt from air systems and prevents damage to pneumatic tools and cylinders, adding to their lifetime use. The dryer is rated for temperatures up to 180ºF.

The ADA Series dryer features a cULus industrial control panel with a refrigerant suction gauge. The unit is housed in a durable powder-coated cabinet, and is shipped with a full refrigerant charge.
