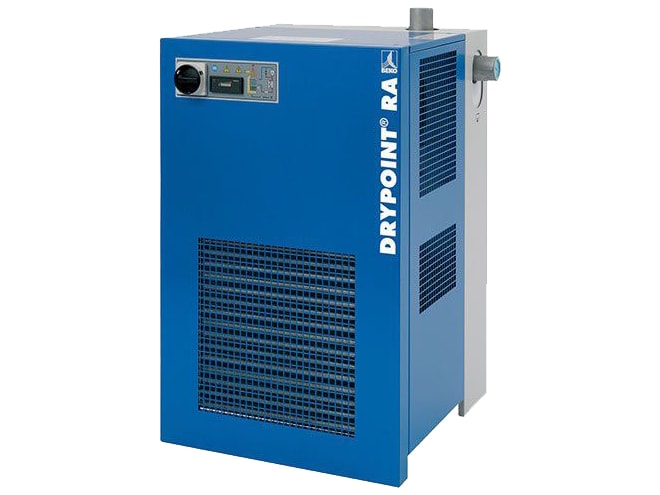

BEKO Technologies RAc 220, 220 SCFM, Non-Cycling Refrigerated Air Dryer

1 1/2" NPT, 230/1/60, 1.25 kW, Timer Drain. View other configurations.

Features

  • 220 SCFM capacity
  • 1 1/2" NPT connection
  • 230/1/60 voltage
  • 1.25 kW power consumption
  • 1 micron required pre-filtration
  • .01 micron recommended post-filtration
  • Pressure rating: 200 PSIG
  • 130°F maximum inlet air temperature
  • 34 to 115°F ambient temperature range
  • Outlet pressure dew point: Class 4-5 outlet PDP in accordance with ISO 8573-1:2010
  • UL and CSA certified
View Other Configurations

The BEKO Technologies DRYPOINT RAc 220 Refrigerated Air Dryer applies an all aluminum profile for minimal pressure drop, and self-cleans using gravity. The hot gas bypass valve is specifically designed for refrigerant drying, stabilizing the dew point. Each model includes a timer drain as standard.

Saturated, warm compressed air is pre-cooled in the air-to-air heat exchanger. The compressed air is then cooled in the air-to-refrigerant heat exchanger to the required pressure dew point. Re-entrainment of separated water droplets is prevented by the large condensate collection chamber and reduced velocity. The timer drain then discharges the accumulated condensate from the dryer, and the cold and dried compressed air leaves the dryer via an air-to-air heat exchanger, reducing the relative humidity and recovering the cooling capacity by up to 60%.
