Overview

Features

  • 115/1/60 power supply
  • 32 SCFM capacities
  • 203 PSIG max operating pressure
  • 3/4" NPT in/out air connection

Description

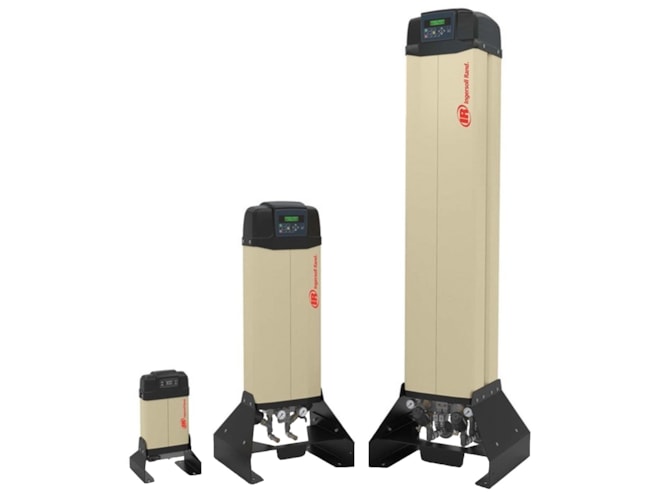

The Ingersoll Rand DA55IM, 32 SCFM Modular Heatless Desiccant Air Dryer is a all-in-one and compact dryer system ideal at point-of-use, drying the air required for the user's specific operation. The dryer delivers ISO Class 2 dew point performance, with optional ISO Class 1 to help prevent corrosion and minimize downtime. The low-pressure drop design saves on energy costs and provides an economical drying solution. The addition of an Energy Management System (EMS) option further assists in energy use reduction.

The modular heatless desiccant dryer is easy to use with an advanced microprocessor with visual display showing data in real time to maintain dryer performance at optimum levels. The display also provides preventative maintenance alerts as well as protection notifications for efficiency and connectivity.
