Overview

Features

  • 100 CFM capacity
  • Connections:
    • 1/2" NPT inlet
    • 3/8" NPT outlet
  • Four outlet connections for multiple users
  • Adjustable pressure regulators
  • Integral CO monitor

Description

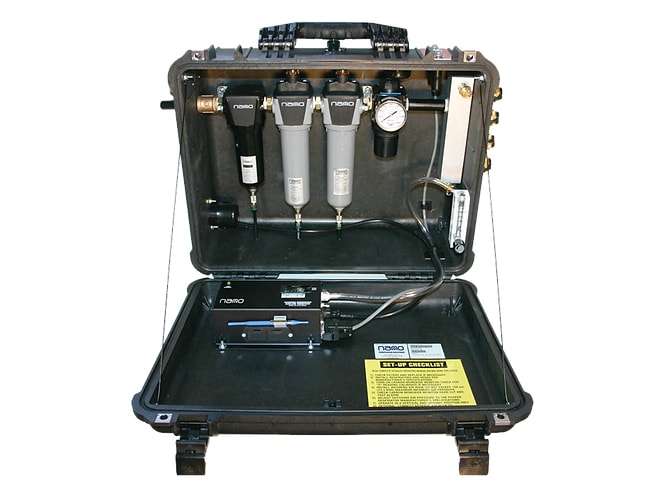

The nano-purification solutions BAC 100 CP N, 100 CFM Breathing Air Dryer houses a Nano F1 water separator and 0.01 micron coalescing filter with automatic condensate drains and an AC activated carbon absorber to remove moisture, oil aerosols, odors and taste to 0.003ppm. The unit complies with CGA7.1 OSHA Grade D (US) and CSA Z180.1-13 (Canada) breathing air standards. Standards include a maximum oil content of 5 mg/m3, 19.5 to 23.5% allowable O2 range, 10ppm maximum CO level, and 1,000ppm maximum CO2 level.
