Overview

Features

  • 900 to 3000 SCFM capacities available
  • 232 PSI max pressure
  • Slimline connectors
  • Differential pressure indicator
  • 4 element grades available:
    • X5: 5 micron
    • X1: 1 micron
    • XA: 0.01 micron
    • AC: 0.01 micron activated carbon

Description

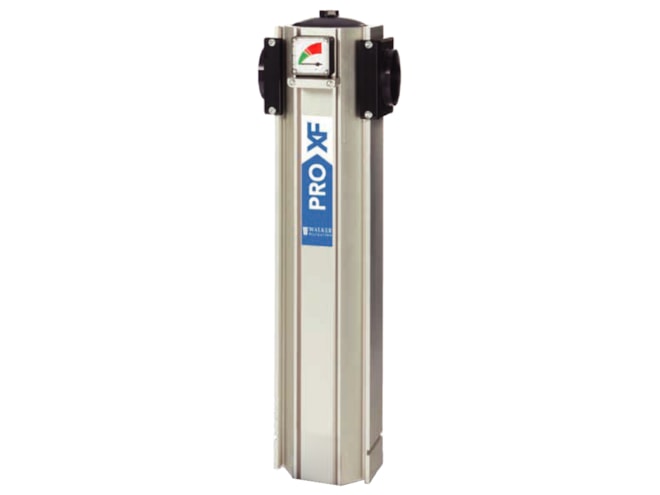

The Walker Filtration PRO XF Series filter module features a sturdy and streamlined design, making it a perfect fit for multi-compressor setups and skid-based packages. These modules are equipped with slimline connectors, enabling a space-saving installation with other modules and water separators to create a multi-banked filtration system.

The design of the PRO XF Series prioritizes ease of installation and maintenance. The top-loading design allows for easy access to the filter element through a screw cap and makes changing out the element quick and efficient. Additionally, the filter bowl has an externally accessible drain, eliminating the need to access the internal parts of the filter for maintenance. Overall, the PRO XF Series is designed with convenience and accessibility in mind.

PRO XF Series filter elements are designed to deliver optimum performance in line with the highest standards of air purity when tested in accordance with ISO 8573-1:2010.
