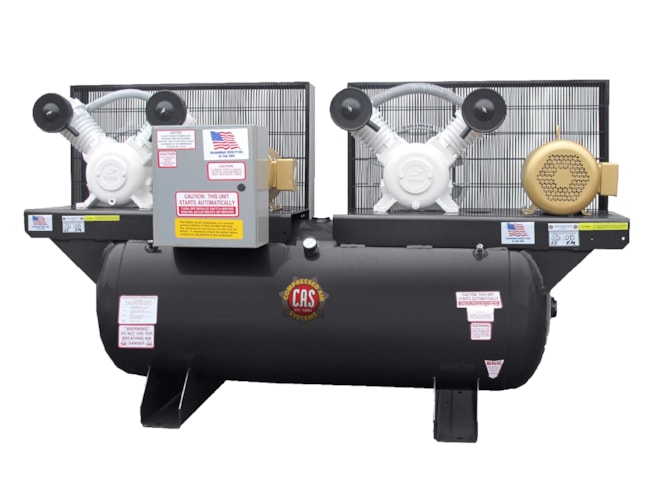

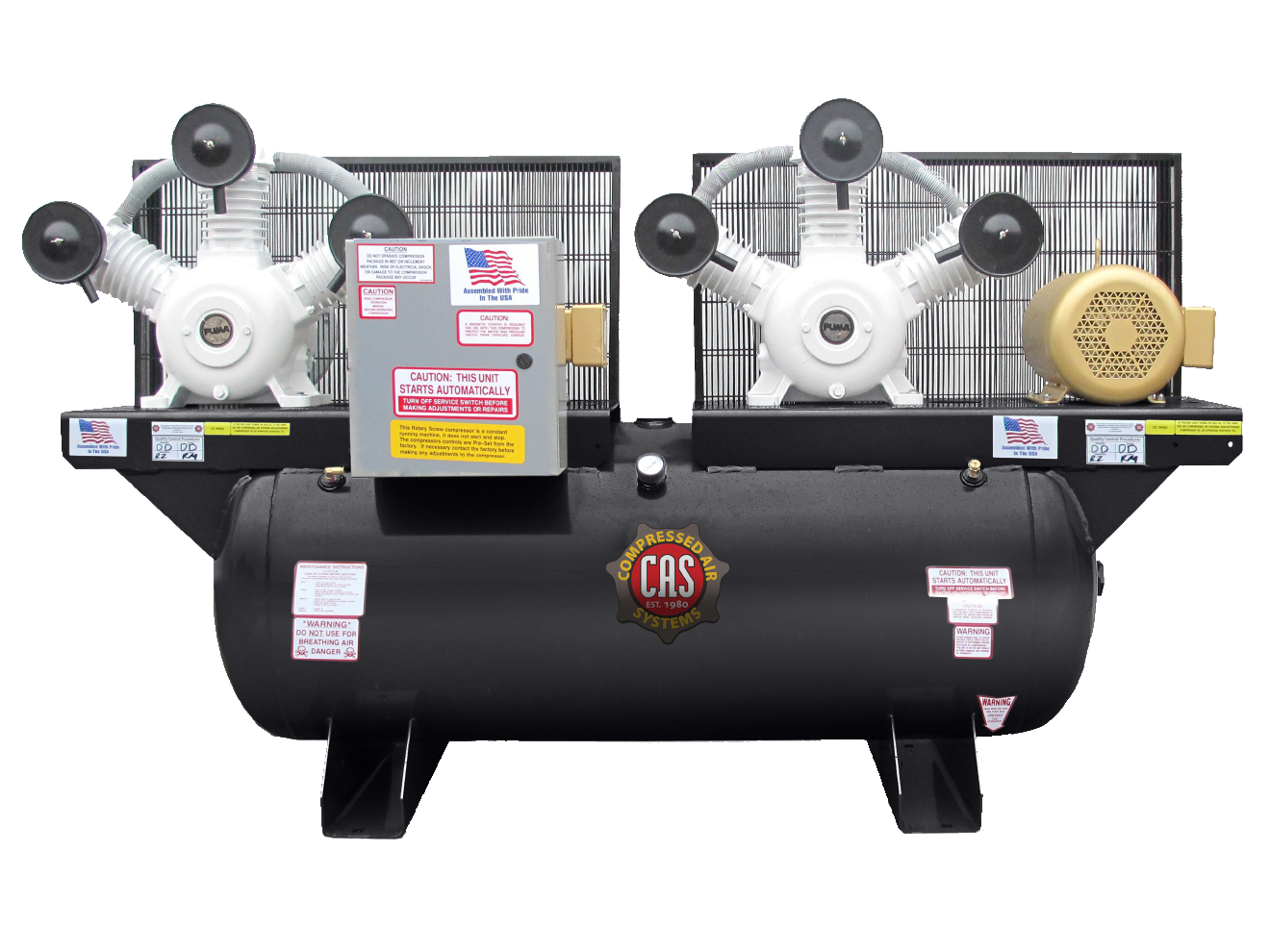

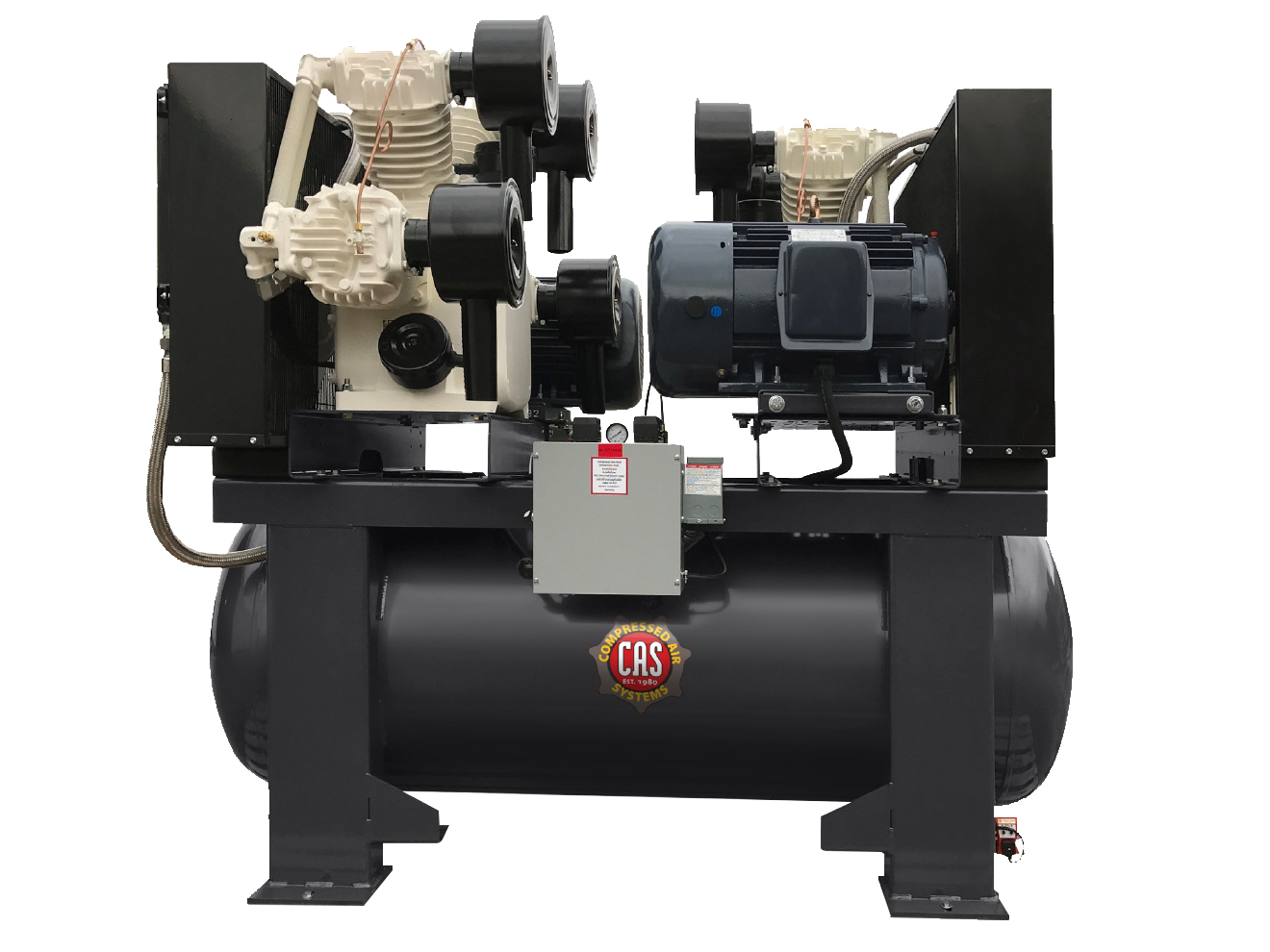

Compressed Air Systems Industrial Stationary Duplex Oilless Piston Air Compressor

Heavy duty single stage oil-free industrial duty pump.

Select your options below…

Need help? Talk to an expert.
{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $11,757.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 2 to 30 HP
  • 12 to 194 CFM @ 125 PSI
  • Voltage options:
    • 208-230/1
    • 208-230/460/3
  • 30 to 240gal tank size
  • Horizontal tank orientation
  • Auto start/stop
  • Magnetic motor starter
  • Fully enclosed belt guard
  • Heavy duty air filters and industrial grade electric motor
  • Elite package includes:
    • Magnetic starter
    • Belt guard after cooler
    • Low oil monitor
    • Automatic tank drain
    • Vibration isolator pads

The Compressed Air Systems Industrial Stationary Duplex Oilless Piston Air Compressor is designed for medical, agricultural, food, beverage, and laboratory environments, and ensures the process or tools are provided with oil-free air. The low RPM pump provides reliable air for any application and is manufactured for durability and long life. The duplex model provides built-in redundancy and the capacity to deliver twice the power in the same amount of space as a typical compressor.

Note that this model is currently only available with the Elite package.

Elite package includes:

  • Magnetic starter
  • Belt guard after cooler
  • Low oil monitor
  • Automatic tank drain
  • Vibration isolator pads
