Deltech HTDN50, 50 SCFM, High Inlet Temperature Refrigerated Air Dryer

1" NPT, 115/1/60, Standard, 2 Year parts & labor warranty, rated for 10 & 15 HP air compressors. View other configurations.

Features

  • 50 SCFM capacity
  • 180°F max inlet air temperature
  • Hermetic refrigeration system
  • Air operated condensate drain
  • Two-stage separator/filter
  • Voltage
    • 115/1/60
  • R-407c refrigerant
  • ISO 8753 Class 6 moisture removal
View Other Configurations

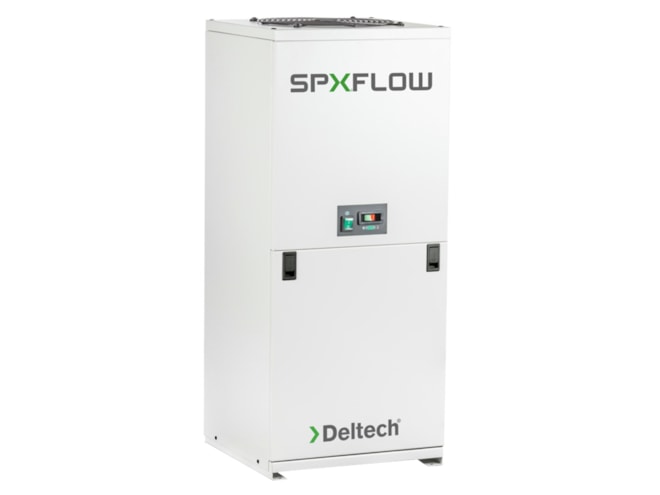

The Deltech HTDN50 non-cycling high inlet temperature refrigerated air dryer is designed to efficiently dry compressed air with inlet temperatures up to 180°F. The HTDN Series features an adjustable timed electric drain, widely spaced inlet and outlet connections, lighted on/off switch, dew point temperature indicator, and fault light. The top mount fan allows installation in tight spaces and the bottom base rail has pre-drilled mounting holes for a secure floor mount. The stainless steel brazed plate heat exchangers with integral demister separator ensure optimal heat transfer for the life of the dryer and the two-stage separator/filter removes condensed oil and water over a wide range of flows.
