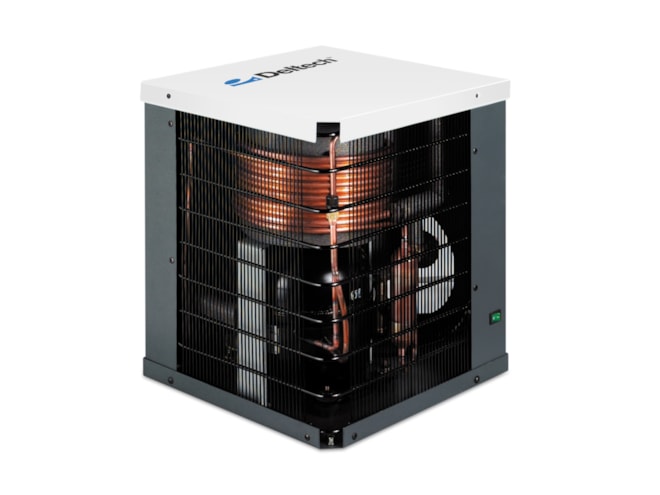

Deltech HG15, 15 SCFM, Refrigerated Air Dryer

3/8" OD, 115/1/60, 2 Year parts & labor warranty, Air cooled, Standard. Rated for 3 & 5 HP Air Compressors. View other configurations.

View 17 Product Reviews

Features

  • 15 SCFM capacity
  • 38°F (3°C) pressure dew point
  • 250 psig max pressure
  • 120˚F max temperature
  • Voltage
    • 115/1/60
  • CSA approval
  • ISO 8573-1 Class 4 to Class 5
View Other Configurations

The Deltech HGEN Series non-cycling refrigerated air dryer is space-saving and designed to keep air systems at a dry 38°F (3°C) pressure dew point. The HGEN Series 5 to 50 SCFM models have smooth bore, copper tube-on-tube heat exchangers that deliver low pressure dew point performance and a centrifugal separator that efficiently captures liquid condensate at varying inlet loads. The HGEN series 5 to 15 SCFM models feature a pneumatically operated float drain and lighted on/off switch, while the 25 to 50 SCFM models come with an electronic drain valve, lighted on/off switch, and dew point temperature indicator. The static condenser design provides quiet operation.

The Deltech HGEN Series 75 to 1200 SCFM models feature stainless steel, cross flow heat exchangers to optimize heat transfer and smooth, non-fouling channels to promote low pressure drop. Herringbone geometry stamped into the stainless steel plates creates turbulent flow for a self-cleaning effect. An increased calming zone and integral demister and separator captures liquid condensate and solid particles, which effectively removes condensate from 0 to 100% flow conditions without moisture carryover. The dryers have a dew point temperature display indicator to monitor inlet load conditions, timed electric condensate drain, panel mounted drain timer control, and a Y-strainer to protect the valve from rust and scale.

Reviews


Write a Review
    Easy Experience
    Reviewed on 5/17/2021
    The experience was about as easy as it could be. The cost was fair for the product. The dryer has been running continuously since January and I have had no issues with it. I run an 80 gallon/3 HP compressor in the humidity of South Louisiana and it keeps up perfectly. Great customer service!
    - Dave
    Totally Solved My Problem
    Reviewed on 11/6/2019
    With the humidity down here we would get water bubbles in our high gloss sprayer making us have to shut down and restart. A major problem. Installing the Deltech dryer has solved that problem. Went local first without much suggest so I'm very happy I found the Compressor World website. I will definitely look to you folks in the future. 5 stars!
    - Greg
    Our Go To Supplier
    Reviewed on 11/6/2019
    Never disappointed when dealing with Compressor World. They have everything we need, their expertise is great, and they deliver on everything that they promise. We will always look to Compressor World for all of our compressed air needs.
    - Scott
    Compressor World Went Above and Beyond
    Reviewed on 11/6/2019
    We needed to meet an installation deadline and the team at Compressor World who were dealing with major weather problems went to great lengths to make sure that the dryer was shipped when needed. It arrived when promised, installed, and it's providing nice, dry air. Can't say enough about Compressor World and we will tell everyone about you.
    - John
    Easy to Use Website, Dryer Works Great
    Reviewed on 11/1/2019
    We use a printing press for to produce our literature and needed to replace our dryer and are very happy we got the Deltech dryer. Very easy to install and it works great. Handled everything on the Compressor World website which was as simple as you can get. Very good experience.
    - Pedro
    Works Like a Champ
    Reviewed on 10/29/2019
    Dedicated to our CNC machine and it does its job. Compact and installed in no time. Very good results. Would recommend this Deltech dryer to others. Appreciate the follow up.
    - Brian
    Fantastic
    Reviewed on 10/10/2019
    We tried to get by with inline desiccant filters but they could not do the job of keeping water out of our lines and constantly replacing the elements was so expensive. Getting this dryer has made my life so much easier. It works great and we look forward to doing business with you guys again. Appreciate the follow up.
    - Jack
    Working Well For Us
    Reviewed on 10/4/2019
    The Deltech dryer works just fine. It was a simple replacement for an older model so we know that it does its job. We do use a lot of compressed air in our park and will look to Compressor World in the future because you guys delivered on every thing you promised.
    - Bob
    Working Just Fine
    Reviewed on 9/26/2019
    This was so easy to install and working just fine. We have it hooked up to a mini-CNC machine and are very happy with how its working. Easily ordered online and was here in no time. Would definitely recommend this dryer to others.
    - Zac
    Seems to Be Working Fine
    Reviewed on 9/18/2019
    Nice compact unit that was so easy to install. It is doing its job since we are not seeing any water coming from the air tools. Nice and easy to order. I'd give you guys a thumbs up and will recommend Compressor World to the local businesses.
    - Chris
    So Easy We Bought 4
    Reviewed on 8/23/2019
    Compressor World's website made replacing our HVAC systems' dryers. We ended up getting 4 dryers. Great selection, even better pricing, and the online ordering was so easy. Time saver and how ordering should be. Good job.
    - Bart
    So Simple to Order Online
    Reviewed on 8/12/2019
    Everything needed was right on the website and the ordering process was simple. Just they way we like it in the purchasing department. Will definitely look to Compressor World in the future.
    - Laura
    Fantastic Dryer
    Reviewed on 8/6/2019
    The dryer and post dryer filter work great. Compared to before, we literally have zero water coming through our lines. Small and inexpensive is a great combination. Highly recommend this Deltech dryer. Greatly appreciated the fact that Compressor World followed up to make sure all is good.
    - Brian
    Tim - Certified Machining
    Reviewed on 8/20/2018
    Our dealings with Compressor World have been great. We have purchased a screw compressor and this chiller and it has been great on both. The guys were helpful thru the purchase and have helped us each time since then when we have had questions. Please keep up the good work.
    - Tim - Certified Machining
    Kevin
    Reviewed on 8/20/2018
    Great to do deal with all around ! Very knowledgeable in all aspects of Every question that was asked, And there was a lot between the GC and the Architect, Very understanding throughout the whole process, Can’t say enough good things, Thank you, Kevin MacEachern JF Plumbing,
    - Kevin
    Nolan
    Reviewed on 8/20/2018
    runs good. Hooked up to a 5 HP pump for my powercoating and sandblasting machines.
    - Nolan
    Peter
    Reviewed on 8/20/2018
    we bought the 15 cfm dryer and Ingersoll Rand 5 hp rotary screw compressor on the 80 gallon air tank and everything is working fine.
    - Peter
