Overview

Features

  • 1/2” to 3” NPT and 4” flange connection size range
  • Differential pressure indicators included:
    • Pop-up indicators on AR10-0025
    • Gauge indicators on AR10-0040 thru AR10-2000
  • Automatic float drains
  • Three different kits available:
    • 1 pre-filter
    • 1 pre-filter and 1 after-filter
    • 2 pre-filters and 1 after-filter

Description

The Altec AIR Refrigerated Air Dryer Filter Kit is a complete compressed air filter kit that takes the guesswork out of which filters are needed to protect your specific Altec AIR air dryer and any downstream processes from contaminants found in the air supply. These Kits are matched to specific Altec AIR refrigerated air dryers in flow, performance, and connection size to ensure the protection matches the requirements of the incoming compressed air as well as the outgoing air.

Kit Contents:

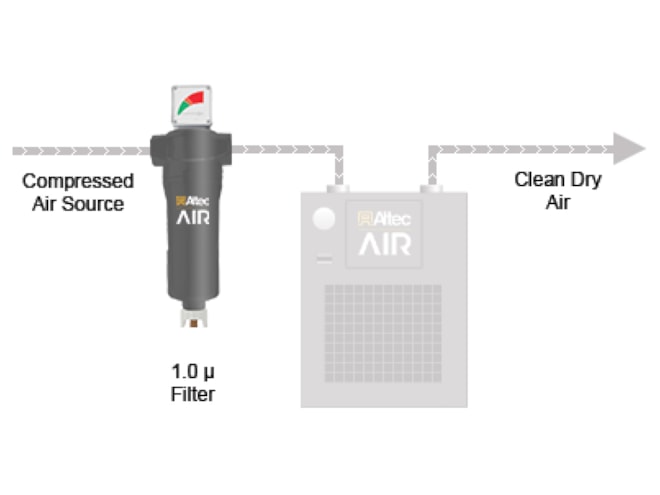

1 pre-filter kit:

  • X1 grade - 1 micron coalescing filter

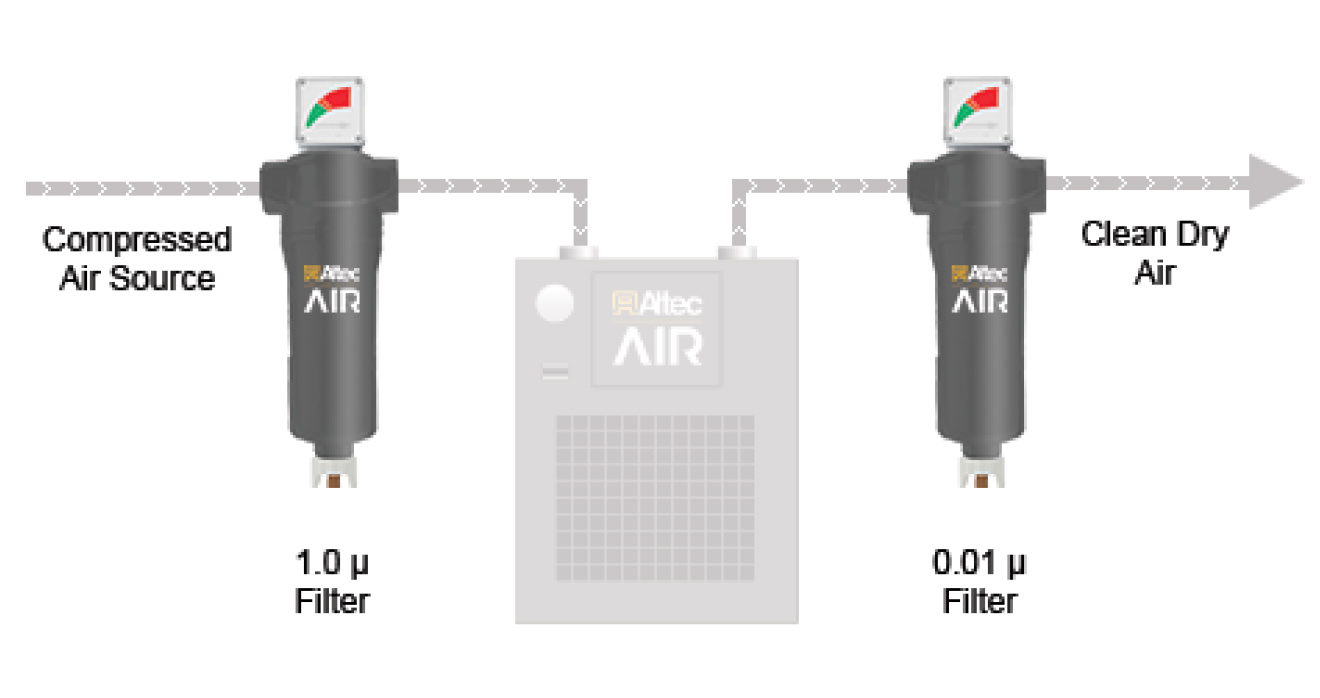

1 pre-filter and 1 after-filter kit:

  • X1 grade - 1 micron coalescing pre-filter
  • XA grade - 0.01 micron coalescing after-filter

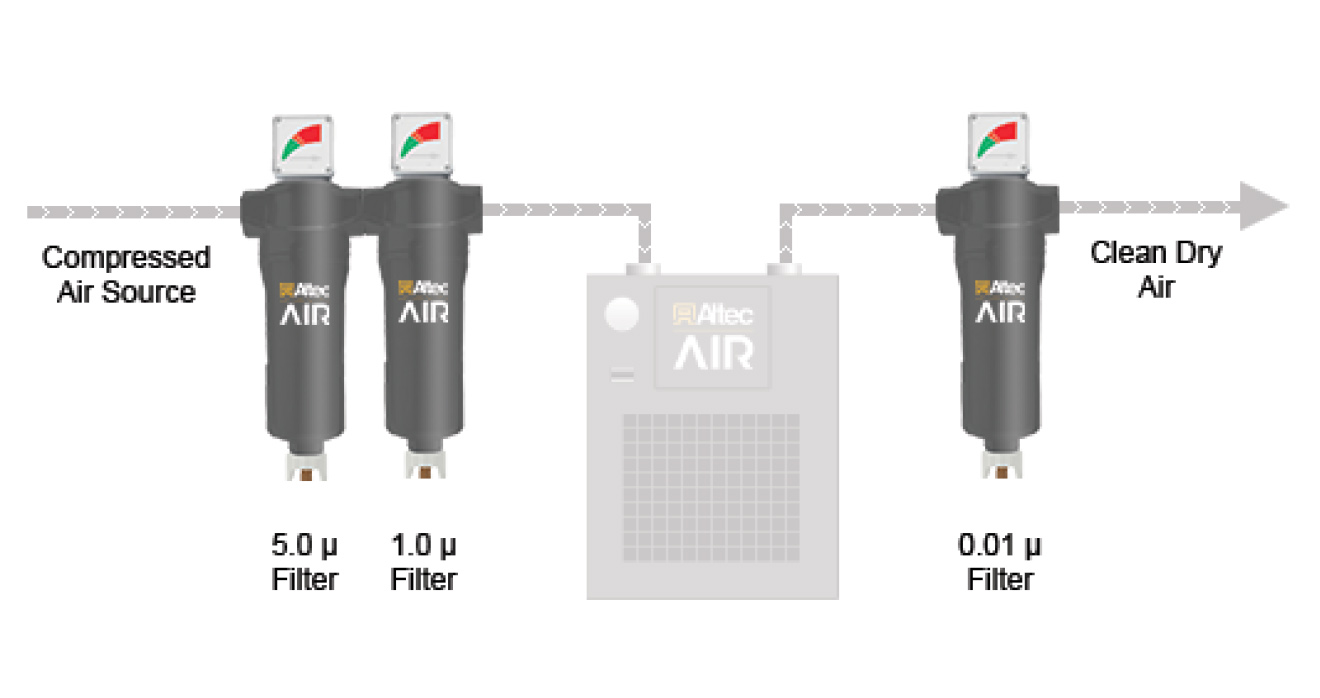

2 pre-filters and 1 after-filter kit:

  • X5 grade - 5 micron coalescing pre-filter
  • X1 grade - 1 micron coalescing pre-filter
  • XA grade - 0.01 micron coalescing after-filter
