Overview

Features

  • 13 to 29 GPM required
  • 2250 PSI hydraulic pressure required
  • ASME/CRN certified safety valves
  • Compressor load/unload operation
  • External NEMA 4 on/off switch
  • NEMA 4 load/unload switch
  • Hydraulic fluid flow regulator, pressure regulator, bypass valve
  • IG SMART fluid control system
  • Intake filter silencer
  • Steel mounting plate
  • Vibration mounting pads
  • 12 volt compressor air and oil cooler pack

Description

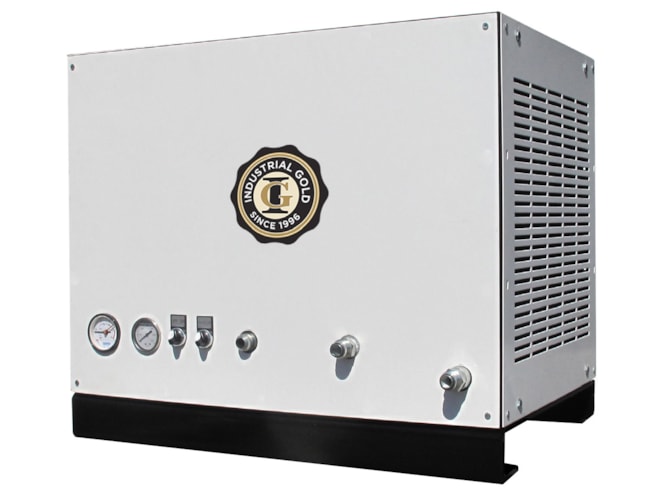

The Industrial Gold Hydraulic rotary screw air compressor is designed for 100% duty applications. Available in capacities from 45 to 130 ACFM at 100 PSI, the compressor has the ability to deliver the air needed for the job. The compressor is wrapped in a sound attenuating enclosure that keeps things quiet. The compressor includes ASME/CRN certified safety valves, hydraulic fluid flow regulator, pressure regulator, bypass valve, mounting plate and pads. All hydraulic fluid and air connections are on the same side of the compressor for easy hook up.
