Overview

Features

  • 5.5 to 78 CFM
  • End vacuum of 27 inHg
  • Pressure up to 14 PSIG
  • 0.25 to 5 HP motor options available
  • Vacuum or pressure operation available
  • Outboard bearings for cooler operation
  • Built-in particulate filters and silencers

Description

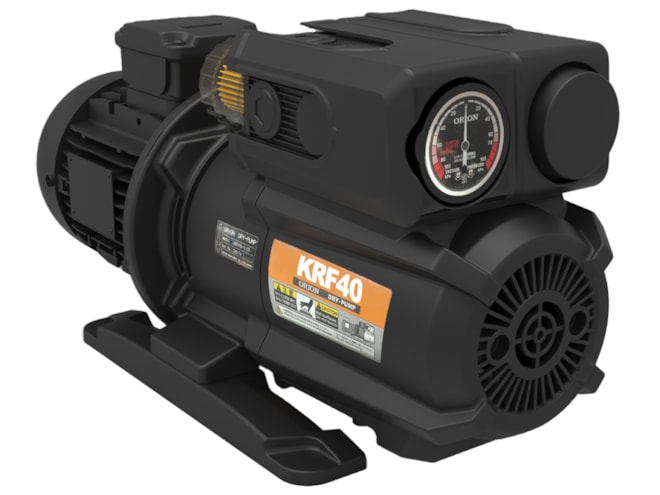

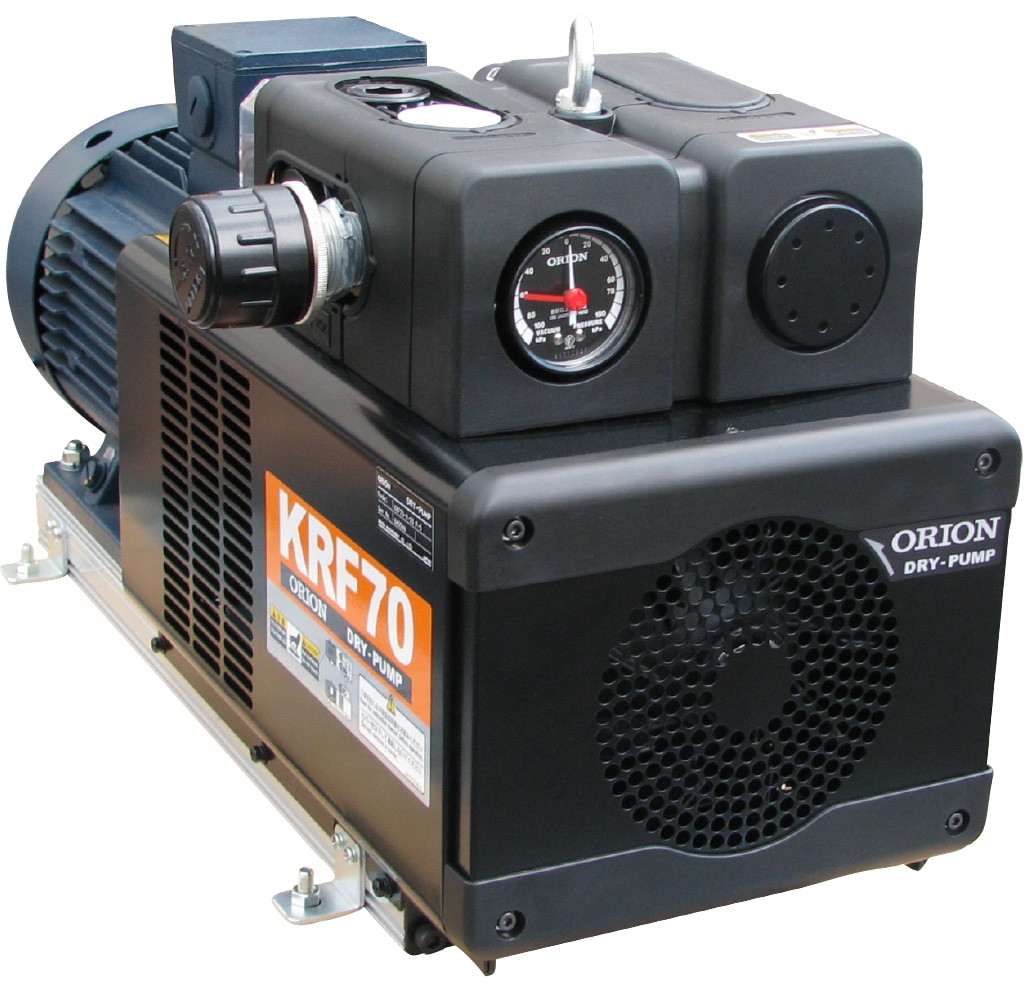

The Airtech Orion Series oilless rotary vane pump is designed to be low maintenance. The Orion Series is an ideal alternative to standard oil sealed rotary vane pumps due to the maintenance free and oilless design. The pumps can quickly be added to your system with its built in particulate filters and silencers for quiet operation. The cooler running outboard bearing increases service life and lifespan of the pump. The Orion Series operates at a maximum of 70 dB(A), a range of 5.5 to 78 CFM, and can achieve an end vacuum of 27 inHg and pressure to 14 PSIG.
