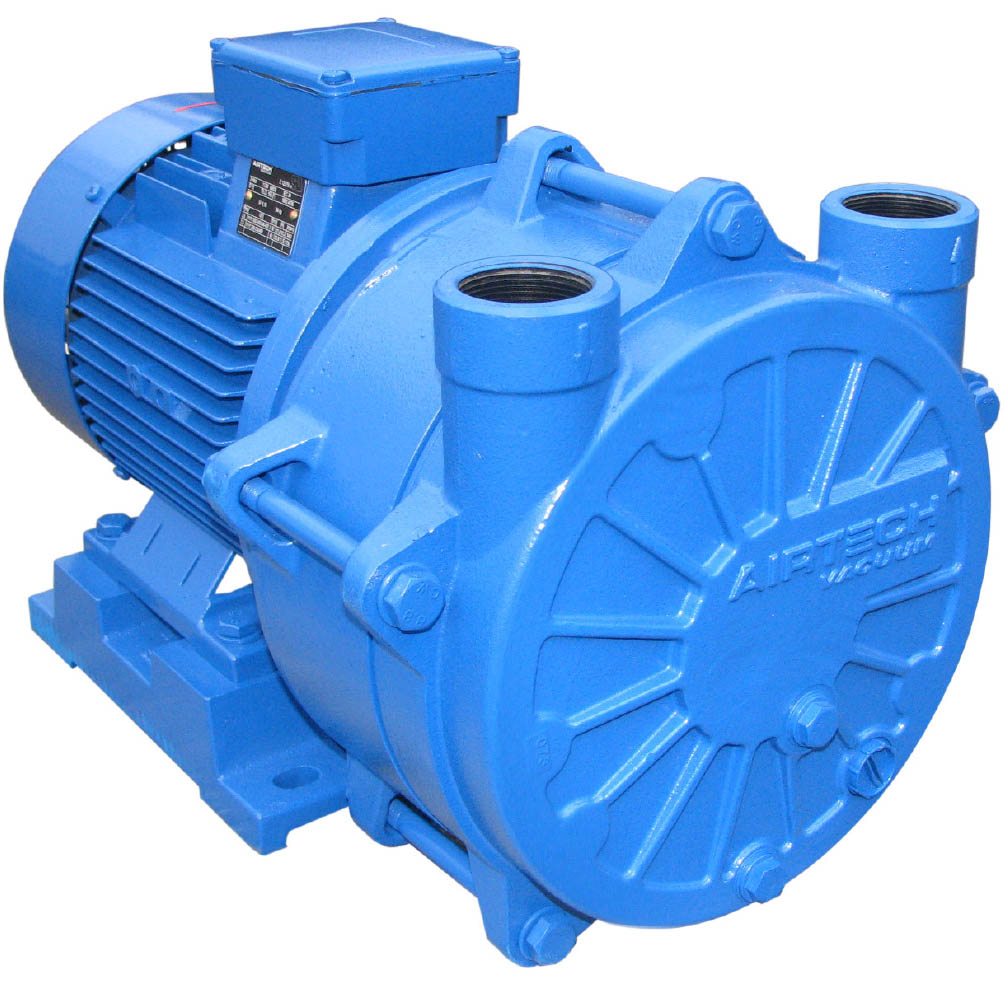

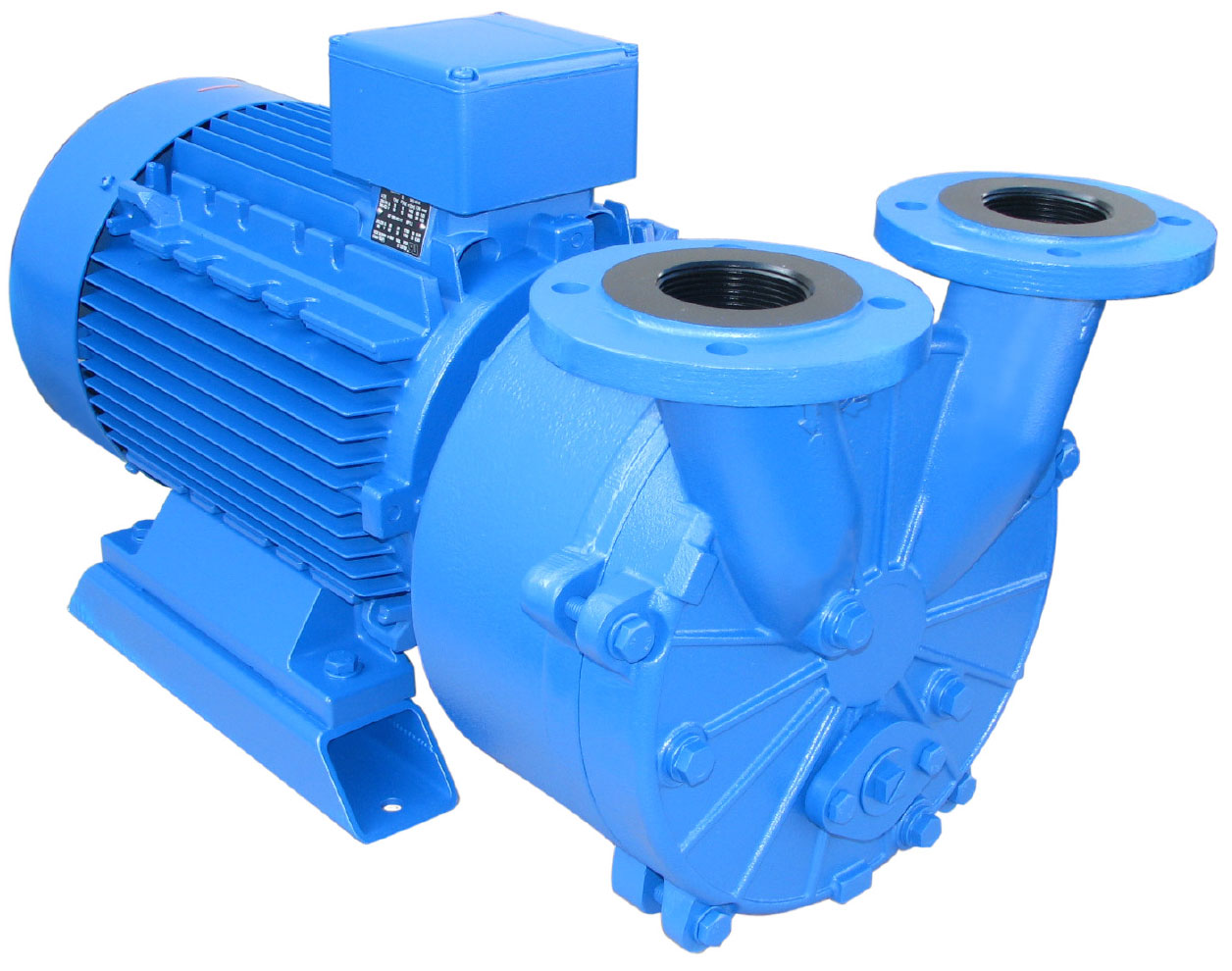

Airtech 3AV Series Liquid Ring Vacuum Pump

0.7 to 20 HP single stage, no belt design, close-coupled pump with vacuum levels up to 29 inHg.

Select your options below…

Need help? Talk to an expert.
{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $3,920.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 18 to 262 ACFM nominal capacities
  • Standard model construction:
    • Cast iron housing
    • 316 stainless steel impeller
    • PTFE flap valve
  • 316 stainless steel on all wetted parts option available
  • Manufactured to ISO-9001 standards
  • 208-230/460/3/60 voltage as standard
    • 230/1/60 voltage available on 1.5 and 3 HP models

The Airtech 3AV Series liquid ring vacuum pump is a closed-coupled pump that is ideal for various applications that require continuous and quiet operation, a compact design, and reduced power consumption. The single stage, variable discharge port design provides efficient operation from 1 to 262 ACFM for vacuum levels up to 29 inHg. The impeller’s unique design of slower spinning curved blades reduces tip speed, which increases the lifespan of the pump. The no belts/no coupling design alleviates problems with wear, alignment, and belt replacement.
