Overview

Features

  • Tank mount
    • 80, 120, 200, and 240 gallon air receiver tanks available
  • 6 to 20 HP
  • 17.6 to 62.4 CFM capacity
  • Pressure rating:
    • 116 PSI (standard)
    • 145 PSI (high pressure option)
  • Voltage options:
    • 208/3/60
    • 230/3/60
    • 460/3/60
    • 208/230/1/60
  • Electric drain standard
    • Optional refrigerated dryer or desiccant dryer available

Description

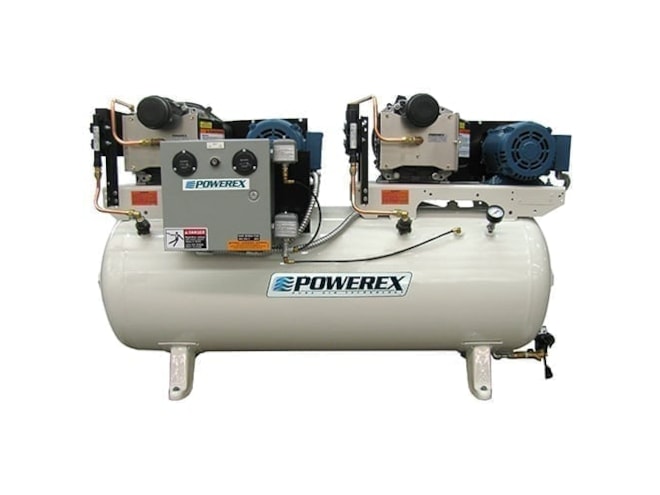

The Powerex STD Duplex Oilless Scroll Tank Mounted System is ideal for applications where clean, dry air is required. Mounting the scroll compressor on the tank maximizes available floor space and allows for easy access to the compressor for maintenance.

The system includes a dual (duplex) oilless scroll air compressor with associated equipment and one ASME tank. The only field connections required are the system discharge, power connection at the control panel and dryer (if applicable), and condensate drain connection. The electric drain requires a standard 115V outlet. All interconnecting piping and wiring is included and operationally tested prior to shipment.

The system's listed horsepower combines the power of each individual motor. A 15 HP system therefore consists of two 7.5 HP motors.

Applications

  • Food processing
  • Environmental
  • Gas generation
  • Pharmaceutical
  • Petrochemical
  • Laboratories
  • Instrumentation
  • Chemical processing
  • Manufacturing
