Overview

Features

  • 1.5 and 2 HP options available
  • 17.7 to 28.3 CFM capacities
  • 10 mbar (abs) ultimate vacuum
  • Flange motor
  • Oil/air heat exchanger
  • Fine mesh filter
  • Vacuum non-return valve
  • Gas ballast valve
  • Protection cover
  • Oil separator

Description

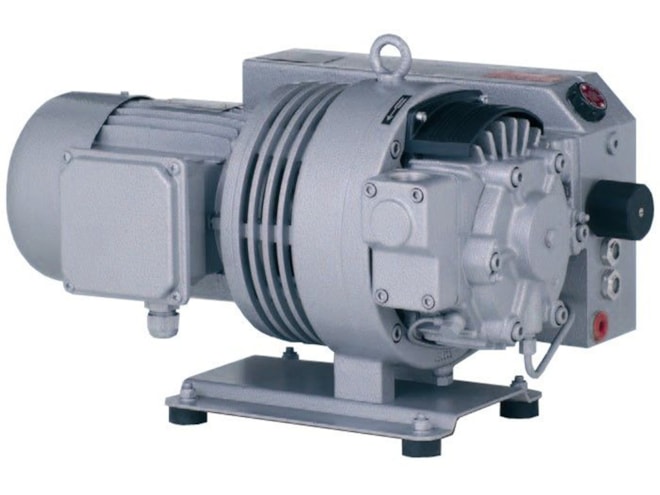

The Elmo Rietschle VCE-Series Rotary Vane Pump utilizes centrifugal force to create vacuum. With nominal capacities up to 28.3 CFM and horsepower options from 1.5 to 2 HP.

Applications:

  • Environmental engineering: aeration, drying, dust extraction systems
  • Food processing: bottling and filling machines, cutting machines, vacuum packing machines
  • Industrial applications: drying systems, dust extraction systems, industrial furnaces, vacuum hold down
  • Packaging industry: centralized vacuum system, packaging machines
  • Pneumatic conveying woodworking industry: dust extraction systems, vacuum hold down
