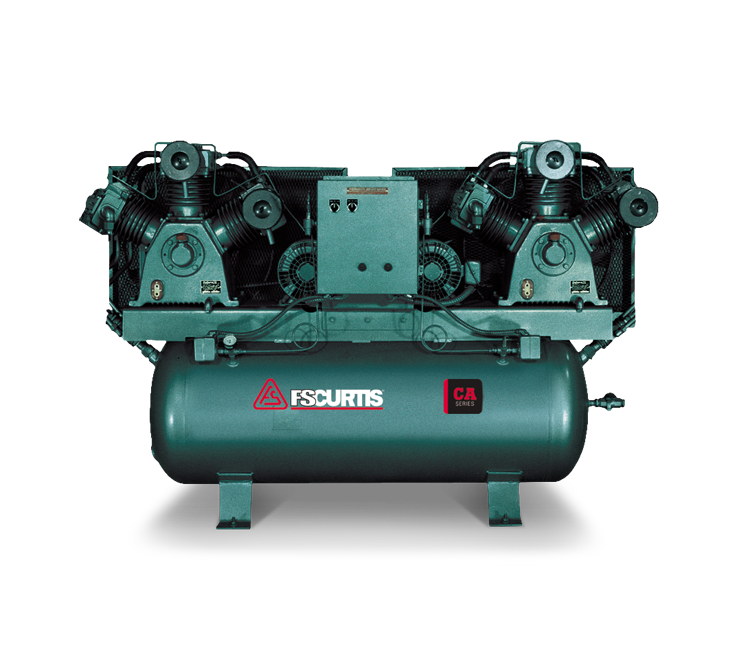

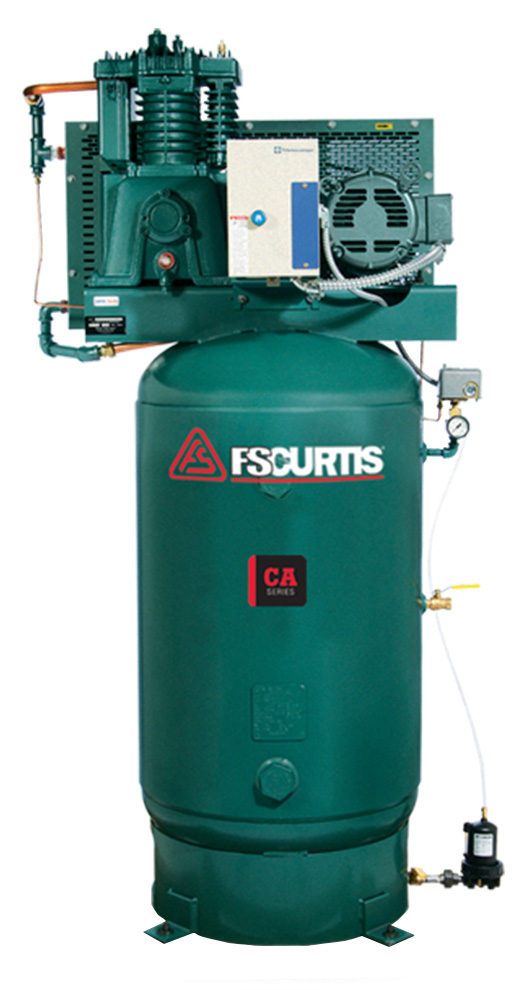

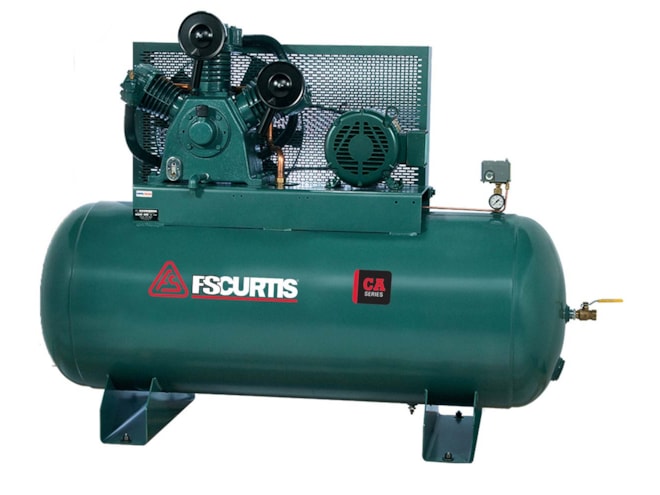

FS-Curtis CA Series Two Stage Piston Air Compressor

Simplex or duplex compressor with cast iron construction and stainless steel valves for variable demand applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $3,755.16
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 5 to 15 HP
  • 18.5 to 42.6 CFM capacity
  • 80, 120 or 200 gallon tank
  • 175 PSI pressure rating
  • Magnetic motor starter
  • Manual tank drain
  • Factory oil filled
  • NEMA designed electric motor
  • ASME approved air receiver and safety valve
  • UL approved pressure switch

The FS-Curtis CA Series two stage piston air compressor is designed for industrial variable demand applications. The CA Series has an all cast iron construction including cylinders and cylinder heads. Two stage compression with intercooling removes heat of compression and improves efficiency. The CA Series features industrial grade main roller bearings, dynamically balanced flywheel, oil sight glass, metal intake filter/silencer, OSHA approved heavy duty stamped steel belt guard, and suction valve head unloaders. All CA models have heavy duty stainless steel valves and precision machined components for support of all rotating parts. Optional add-ons include a low oil guard and an air cooled aftercooler.

FS-Curtis CA Series Piston Air Compressor Pump
FS-Curtis CA Series Piston Air Compressor Pump

Single and two stage replacement pumps with splash lubrication and cast iron construction.

Starting at $466.64
ToolImage
Service & Preventative Maintenance Contracts Available

Free estimates available.

Manufacturer Stock

Part Number Price Available
FCA05E57V8S-A2L1XX
Show Configuration
$3,755.16 8 in stock
FCA10E71H1S-A3L1XX
Show Configuration
$5,830.72 5 in stock
FCA15E15H1S-A3L1XX
Show Configuration
$7,180.48 5 in stock
FCA05E57V8S-A3L1XX
Show Configuration
$3,755.16 4 in stock
FCA07E57V8S-A2L1XX
Show Configuration
$3,983.16 4 in stock
FCA10E71V1S-A3L1XX
Show Configuration
$5,830.72 4 in stock
FCA07E57V8S-A3L1XX
Show Configuration
$3,983.16 3 in stock
FCA05E57D1S-A3L1XX
Show Configuration
$9,021.96 2 in stock
FCA05E57V8S-A9L1XX
Show Configuration
$3,755.16 2 in stock
FCA10E71H1S-A4L1XX
Show Configuration
$5,830.72 2 in stock
FCA10E71H1S-A9L1XX
Show Configuration
$5,830.72 2 in stock
FCA05E57H8S-A2L1XX
Show Configuration
$3,755.16 1 in stock
FCA07E57V8S-A9L1XX
Show Configuration
$3,983.16 1 in stock
FCA10E71V1S-A4L1XX
Show Configuration
$5,830.72 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
