VMAC H-Series Hydraulic Rotary Screw Air Compressor

Compact deck mount compressor capable up delivering up to 25 to 60 CFM at 100 PSI, 2 models available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $6,584.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Flow rates at 100 PSI (150 PSI max):
    • H40: 25 to 40 CFM
    • H60: 40 to 60 CFM
  • Hydraulic requirements:
    • H40: 9 to 12 GPM
    • H60: 14 to 21 GPM
  • Hydraulic pressure at full load:
    • H40: 2345 PSI; 3000 PSI
    • H60: 2450 PSI; 3000 PSI

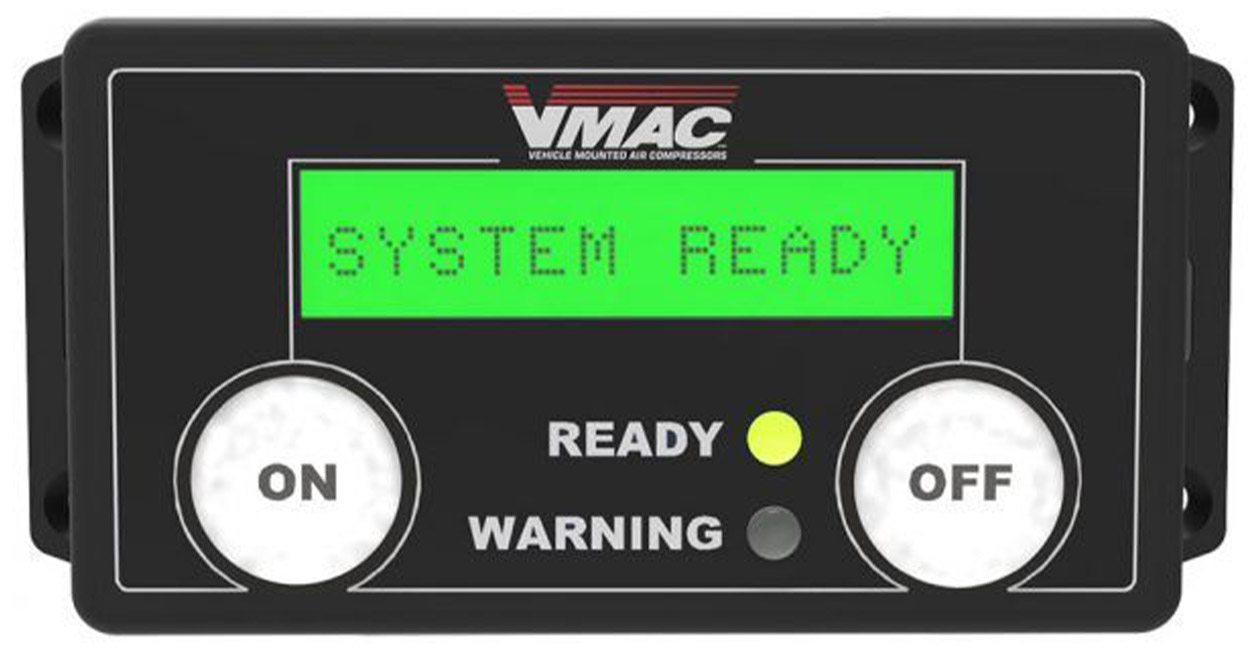

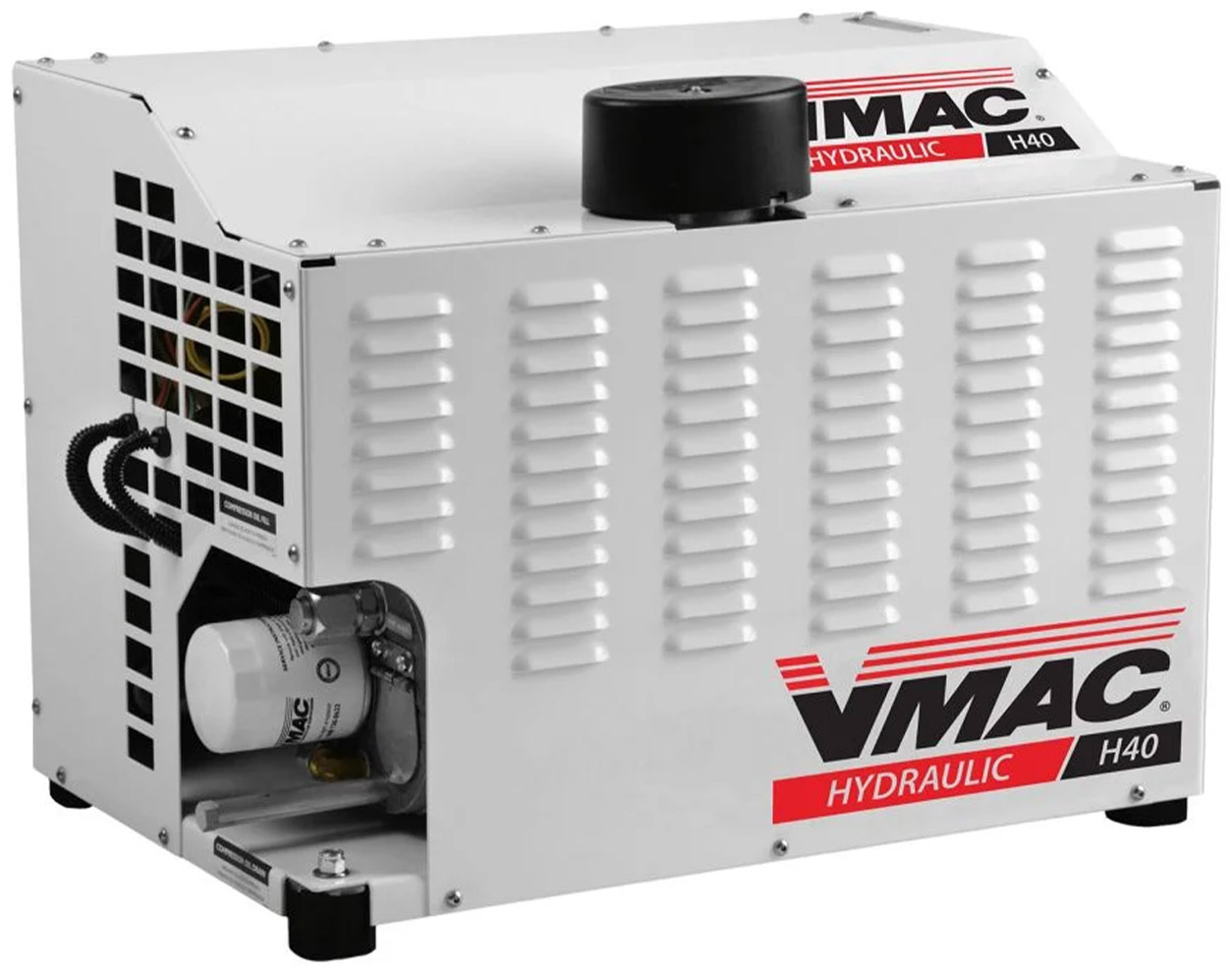

The VMAC H-Series hydraulic rotary screw air compressor is an ideal solution for fleet managers and owners looking for a compact, powerful, and lightweight hydraulic deck-mount air compressor that can operate in any climate. The H-Series features an oil-injected rotary screw air compressor produces 25 to 60 CFM and are designed to run continuously or intermittently. It also includes an advanced control system with easy to use digital controls that extend compressor life by automatically protecting it in extreme environments.
