Overview

Features

  • 110 PSIG pressure rated (optional 200 PSIG model available)
  • Hydraulic requirements: (at 110 PSIG)
    • Delivery 65 CFM: 18.5 GPM
    • Delivery 75 CFM: 21.4 GPM
    • Delivery 85 CFM: 23.8 GPM
    • Delivery 95 CFM: 26.2 GPM
    • Delivery 100 CFM: 27.6 GPM
  • 12V electrical (24V option available)
  • 2-stage dry type air intake
  • 2.5 gallon fluid capacity
  • 14 gauge aluminum enclosure
  • 2 year airend warranty

Description

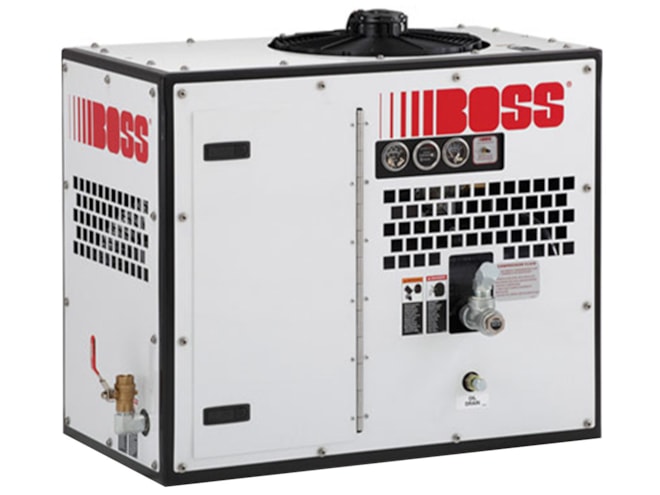

The BOSS Industries Infinity 100 hydraulic rotary screw air compressor design allows you the option to choose any CFM output up to 100 CFM. By simply adjusting the flow, the compressor system will produce 100 CFM at 110 PSIG continuously. The Infinity 100 includes all of the major components for your system. This includes an integrated compressor oil cooling package, hydraulic motor directly coupled to geared airend, self-contained separator element, hour meter, compressor lubricant temperature gauge, air pressure gauge, and a receiver tank with filler port and drain valve.

The built-in access panel allows for a majority of the components to be accessible for maintenance and service. Other features such as a spin-on oil compressor oil filter and separator element manifold reduces the time and costs associated with routine maintenance.

In Stock

Part Number Price Available
20109
$11,442.76 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6 to 8 weeks". Click here to select options
