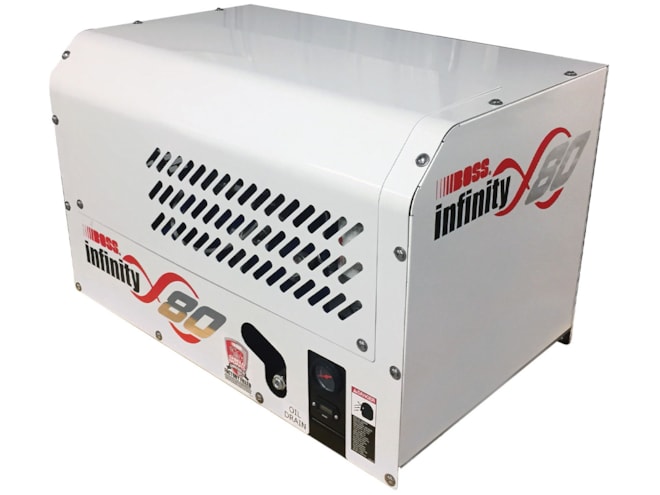

BOSS Industries Infinity 80 Hydraulic Rotary Screw Air Compressor

Name: BOSS Industries Infinity 80 Hydraulic Rotary Screw Air Compressor
Price: 9437.21 USD
Availability: BackOrder

Above deck, direct drive rotary screw air compressor with a continuous output up to 80 CFM at 100 PSIG.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

List Price: ${{ calcListPrice | formatCurrency }}

Starting Price: $9,437.21

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

12V electrical (24V option available)
2-stage dry type air intake
0 to 100% of demand
Hydraulic ports:
- Inlet: 12 SAE
- Outlet: 16 SAE
Hydraulic requirements:
- Delivery 80 CFM at 100 PSIG: 17.8 GPM, 2350 PSIG
- Delivery 65 CFM at 150 PSIG: 15.0 GPM, 2750 PSIG
- Delivery 60 CFM at 175 PSIG: 14.0 GPM, 3000 PSIG
- Delivery 45 CFM at 175 PSIG: 10.7 GPM, 2900 PSIG
3/4" NPT air outlet connection
1 gallon oil sump capacity
-20 to 110°F ambient temperature range
Optional high pressure shutdown switch available

The BOSS Industries Infinity 80 hydraulic rotary screw air compressor includes all of the major components for your system. This includes the airend, oil receiver tank, thermal valve, air inlet filter, and air pressure regulator, all mounted on a common frame and enclosed in an aluminum canopy. The Infinity 35 incorporates a hydraulic cooler in conjunction with the compressor cooler as standard equipment and the instrumentation displays pressure and operating hours.

The hydraulic manifold block with relief and solenoid valves simplifies the installation. The compact design allows the compressor to fit just about anywhere on your crew truck’s body.

The built-in access panel allows for a majority of the components to be accessible for maintenance and service. Other features such as a spin-on oil compressor oil filter and separator element manifold reduces the time and costs associated with routine maintenance.
