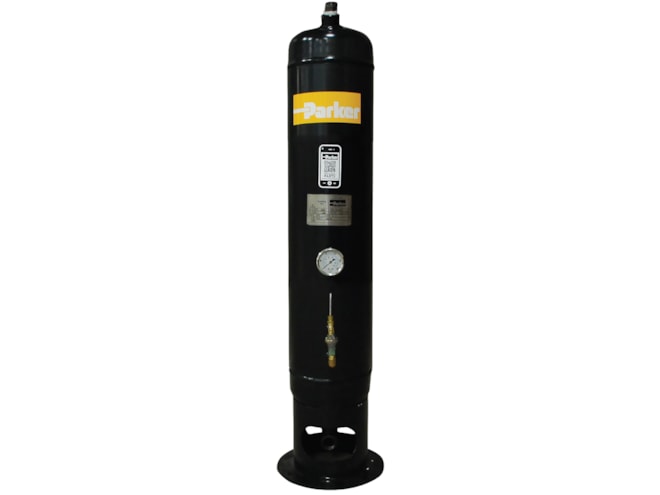

Parker CAT Activated Carbon Tower

Name: Parker CAT Activated Carbon Tower
Price: 5834.43 USD
Availability: BackOrder

For oil vapor removal; meets ISO 8573-1:2010 Class 1.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

List Price: ${{ calcListPrice | formatCurrency }}

Starting Price: $5,834.43

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

100 to 1,000 SCFM
Connection:
- 1 to 2" NPT
- 3" ANSI Flanged
232 PSIG pressure rating
122°F maximum air inlet temperature
35 to 122°F ambient temperature range
Compressed air and gaseous nitrogen medium
Materials of constructions:
- Pressure vessels: carbon steel, welded, ASME
- Seals: nitrile
- Adsorbing material: 100% activated carbon
Recommended filtration requirements:
- Pre-filter: ISO 8573-1: 2010 Class 1, 0.01 micron, 0.01 mg/m3 carryover
- After filter: Solid particulates 1.0 micron
31 to 310lbs activated carbon

The Parker CAT Activated Carbon Tower performs at an outlet oil level of .003ppm (.003mg/m³) with .01mg/m³ inlet concentration, for a 3.33:1 reduction. The unit is designed for a frost-free indoor installation in a non-hazardous environment. Separate fill and drain ports allow for quicker carbon replacement. The unit is standalone, and includes a pressure gauge, oil indicator, and ASME coded vessels.
