Overview

Features

  • Dryer Performance:
    • Low relative humidity - down to .01% RH
    • Down to -80°F dew points
  • 2-stage pre-filtration
    • Water separator - filters particulate down to 10 micron
    • Oil coalescing filter - filters particulate down to .01 micron
  • 175 PSI max operating pressure
  • Molecular sieve desiccant
  • Solenoid valve timer
  • Automatic drain
  • Purge exhaust muffler
  • Wall mounting brackets
  • 1/2" NPT inlet and outlet connections
  • Pneumatic powered option available
  • 60 gallon storage tank

Description

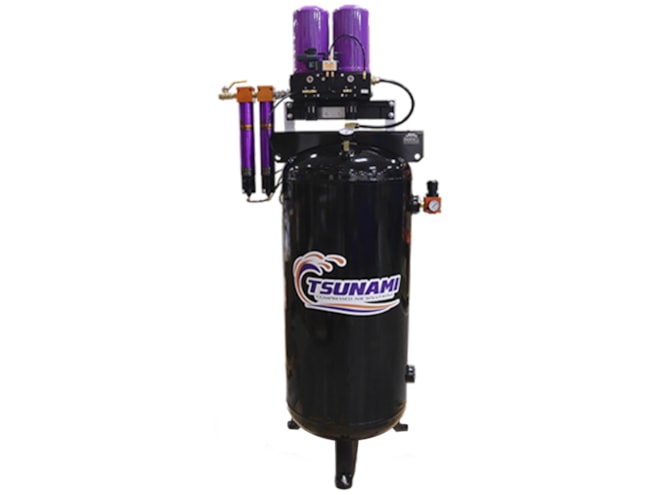

The Tsunami Pure Series Regenerative Desiccant Air Dryer is rated for 40 CFM airflow, and fitted for 10 HP compressors. The Pure Series uses a solenoid timer valve to control the dryer and two-stage pre-filtration to assure removal of water, oil, and particulates before entering the dryer. The regenerative drying technology utilizes sweep air to regenerate the towers during operation.
