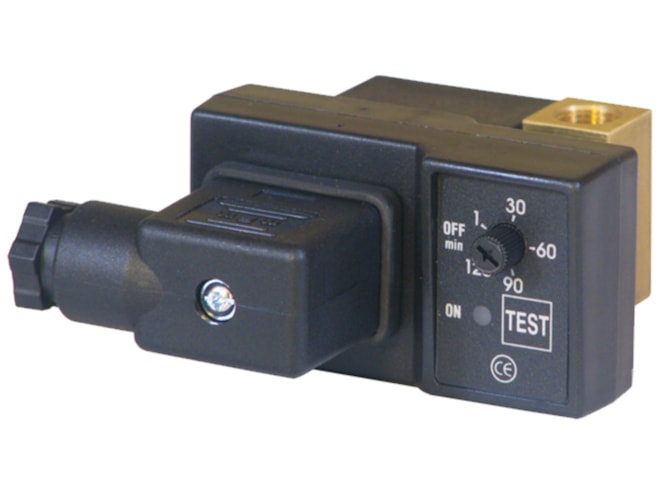

JORC Industrial TEC-11 Series Drain
Electronic timer controlled drain designed for filters and dental compressors up to 230 PSI.

Overview
Features
- 0 to 230 PSI pressure range
- Timer cycle range
- On: 2 seconds fixed
- Off: 1.2 to 120 minutes
- Included test feature
- 2mm valve orifice
- FPM valve seals
- Brass valve body
- DIN 43650-B/ISO 6952 power connection
- NEMA4 (IP65) protection
Description
The JORC Industrial TEC-11 Series drain is a compact and low profile timer drain specifically designed for installation under a filter housing or dental compressors. With a vertical flow and wide, short design, the TEC-11 is ideal for these specific applications.
The TEC-11 features an adjustable electronic timer, test feature, LED on/off indication, and a direct acting valve. All of these features combine to provide reliable and cost effective condensate removal from any size filter or compressor.
