Overview

Features

  • 15 and 20 CFM models available
  • Dryer Performance:
    • Low relative humidity - down to .01% RH
    • Down to -80°F dew points
  • 2-stage filtration:
    • Water separator - filters particulate down to 10 micron
    • Oil coalescing filter - filters particulate down to .01 micron
  • Membrane dryer core
  • Automatic drain
  • Wall mounting brackets
  • Outlet regulator
  • Connection port sizes:
    • 15 CFM: 1/4" NPT
    • 20 CFM: 1/2" NPT

Description

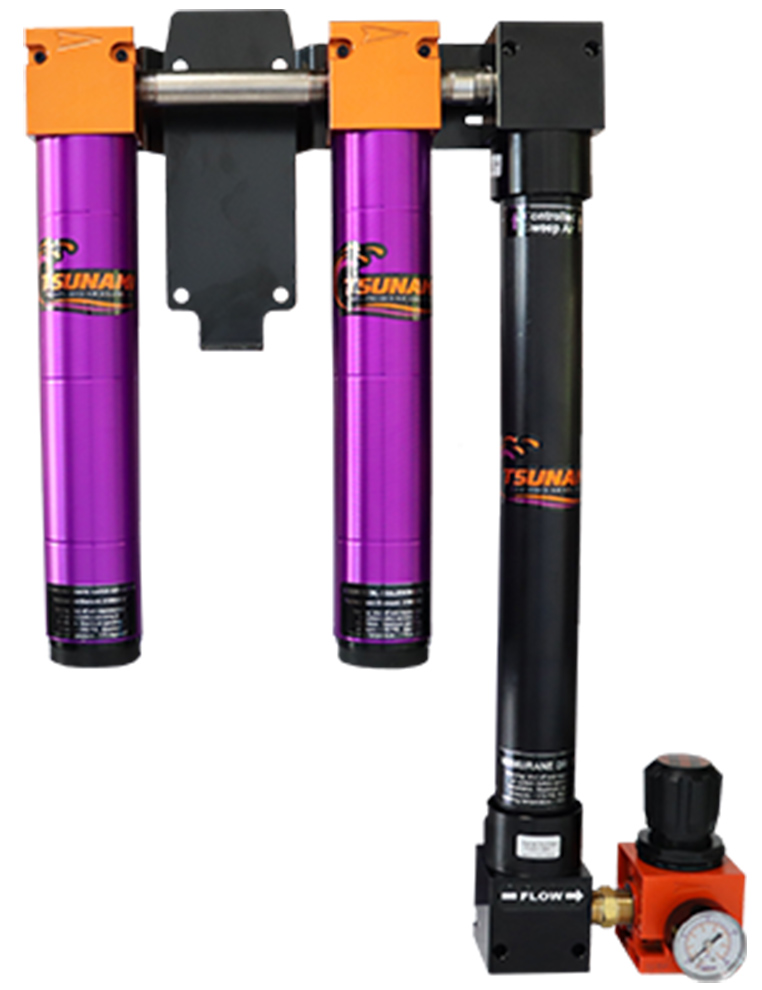

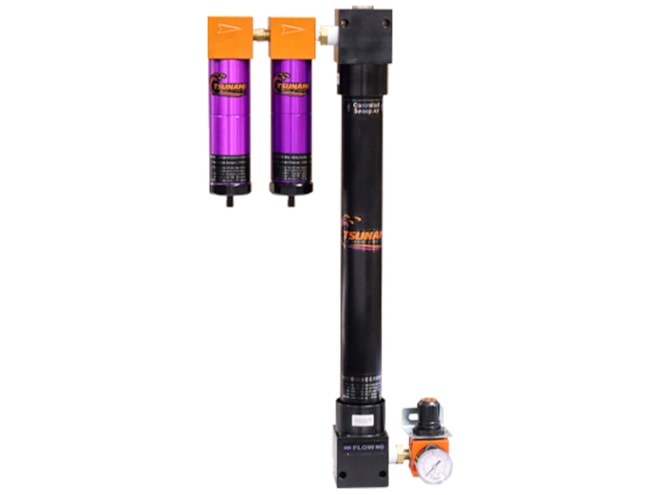

The Tsunami Membrane Air Dryer is a 2-stage system that includes a water separator, oil coalescing filter, and membrane dryer. The incoming air enters the 1st and 2nd stage filters where liquid water, oils and particulates are removed. The air then moves on to the membrane dryer where the core removes water vapor.
