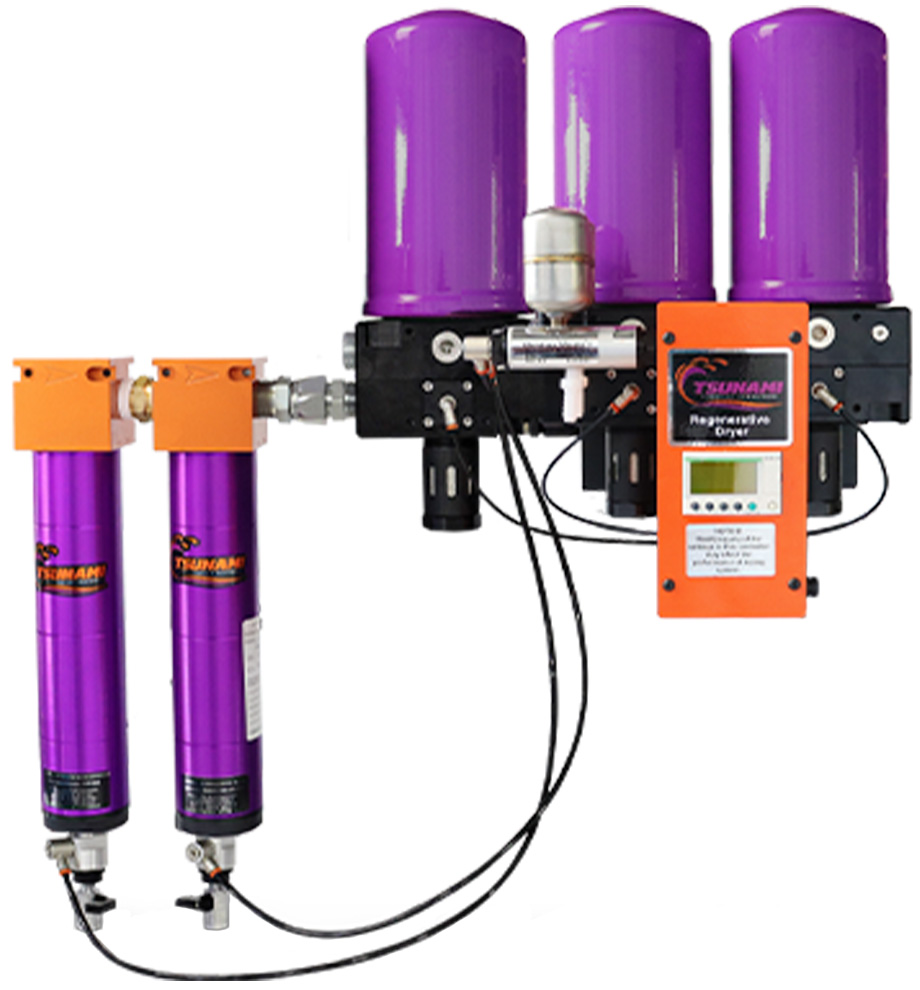

Tsunami Ultra Series Desiccant Air Dryer

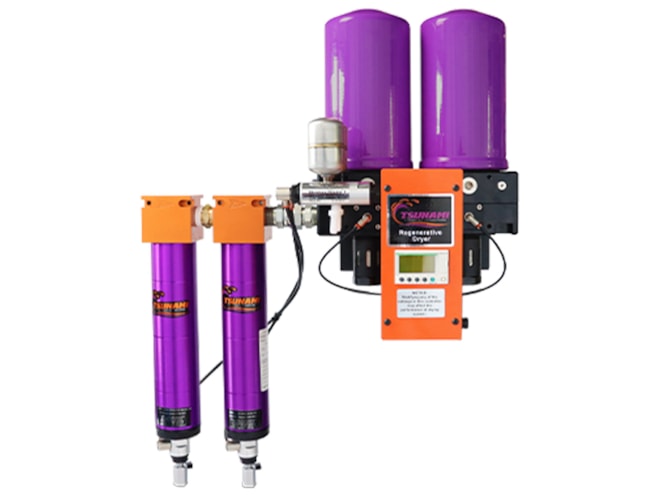

Wall or tank mounted dryer system with 2-stage pre-filtration, available in 40 to 120 CFM airflow rated options, dew point starting at -40° F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $3,834.81
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • Dryer Performance:
    • Low relative humidity - down to .01% RH
    • Down to -80°F dew points
  • 2-stage pre-filtration
    • Water separator - filters particulate down to 10 micron
    • Oil coalescing filter - filters particulate down to .01 micron
  • Molecular sieve desiccant
  • Programmable logic controller
  • Automatic pneumatic drain
  • Purge exhaust muffler
  • Wall mounting brackets
  • Outlet regulator
  • Optional 80 gallon storage tank available
  • 3-year standard warranty

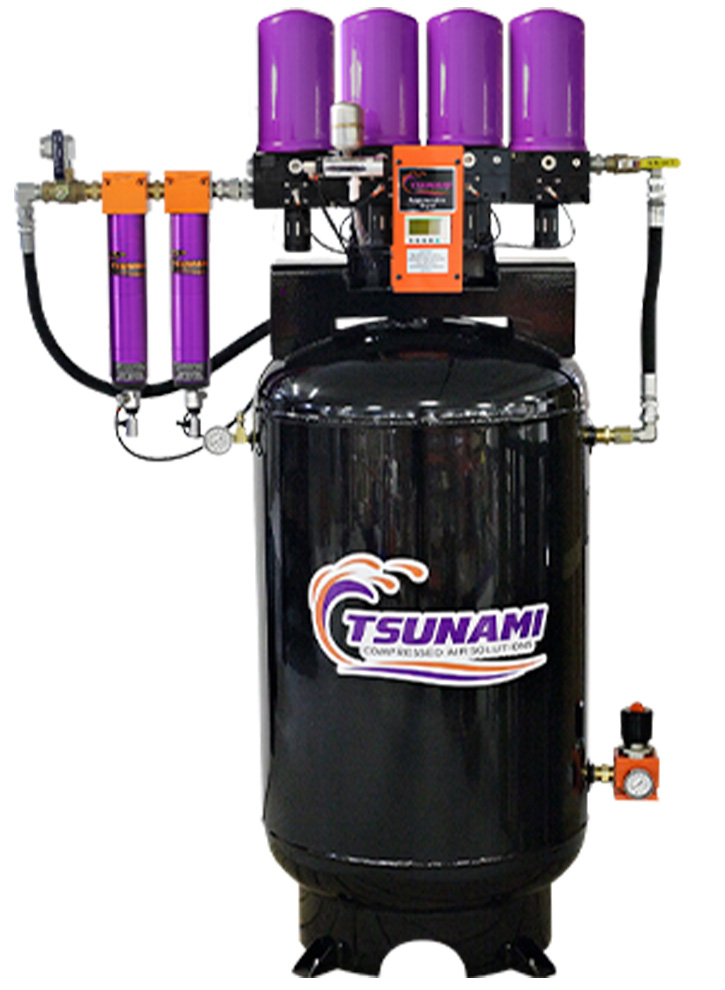

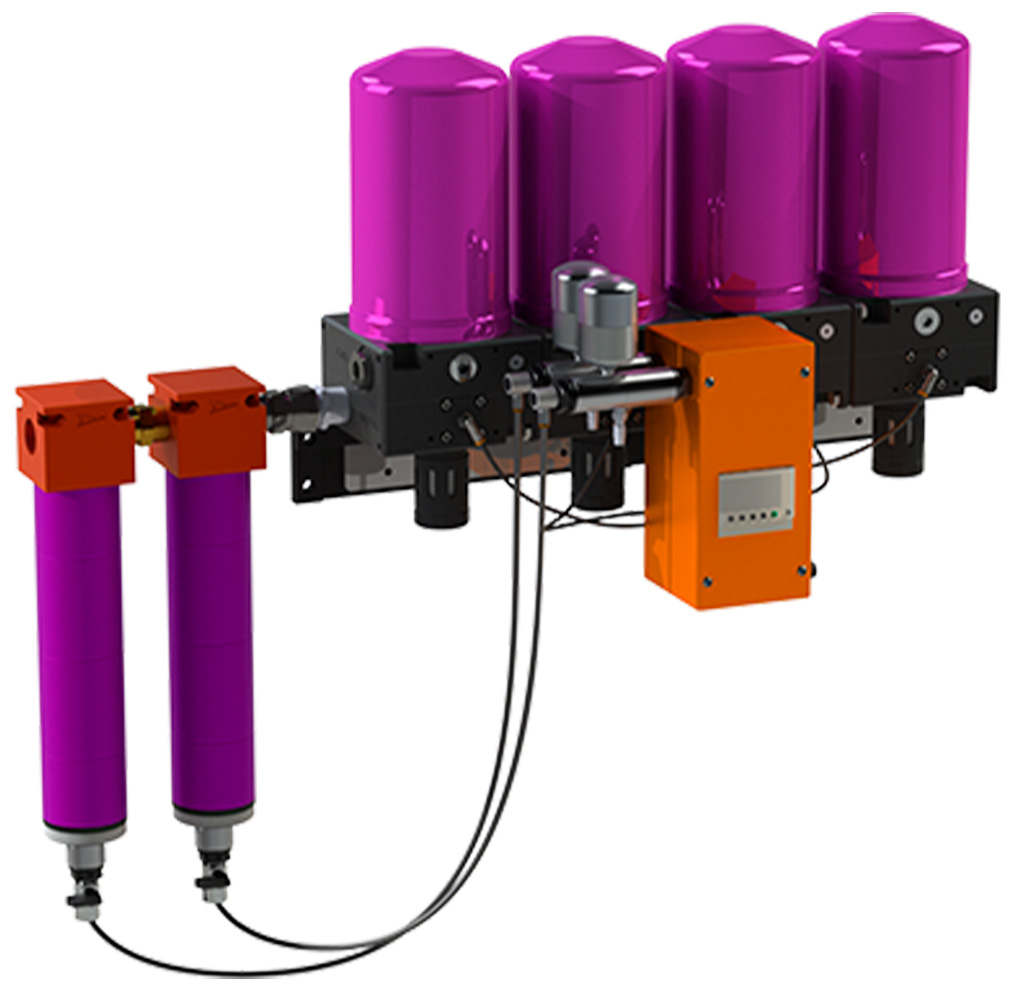

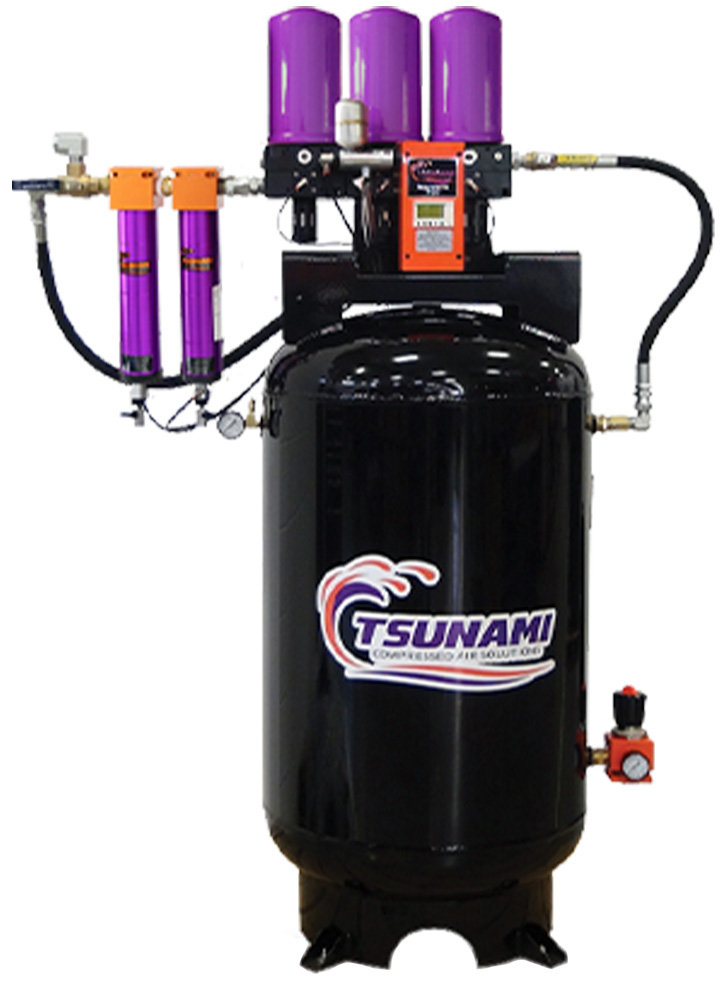

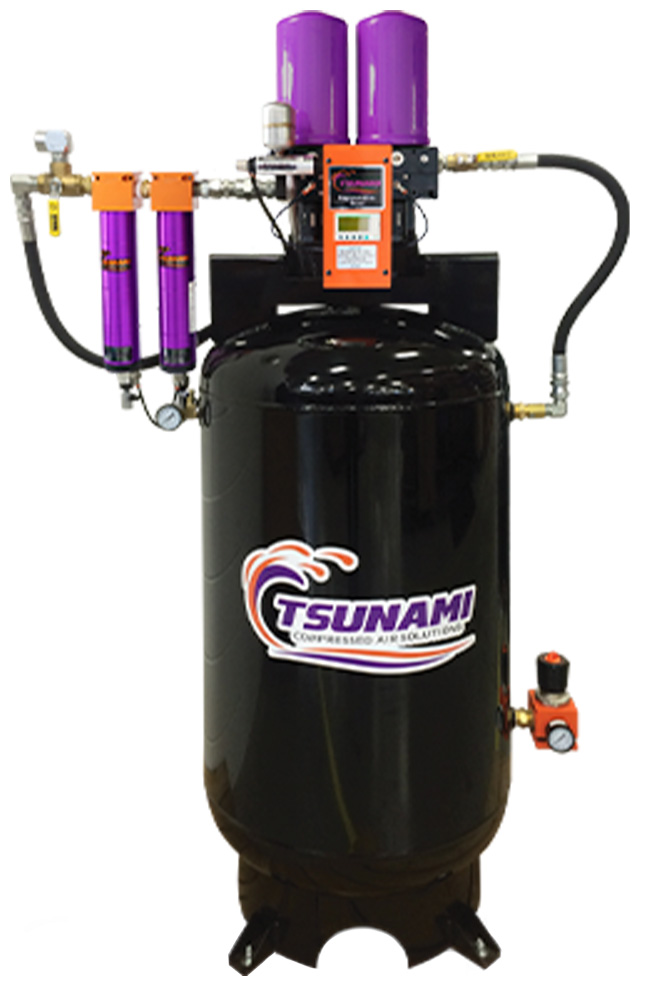

The Tsunami Ultra Series Air Dryer is designed as a complete package with Tsunami pre-filters, Programmable Logic Controller (PLC) and Moisture Minder automatic drains. Chose from a wall-mounted dryer system or a tank-mounted (80 gallon tank) dryer system rated for 40, 60, 80, or 120 CFM airflow.

The Tsunami pre-filtration includes a water separator and oil coalescing filter to remove liquid water, bulk oils, and particulates from the air system. The programmable logic controller cycles the dryers and pneumatic drains, providing high efficiency and allowing for dryer expansion. The built-in bypass system allows the dryer to be shutoff for maintenance or service without stopping production.
