Overview

Features

  • 4,500 or 50,000 SCFM compressor capacity
  • 9,000 or 100,000 SCFM dryer capacity
  • 360 or 912 PSIG maximum pressure
  • Connections
    • 3 x 3/4" NPT (low capacity options)
    • 2 x 3/4" / 1 x 1" NPT (high capacity option)
  • 33 to 140°F operating temperature
  • 115 VAC
  • Standard Viton® diaphragm

Description

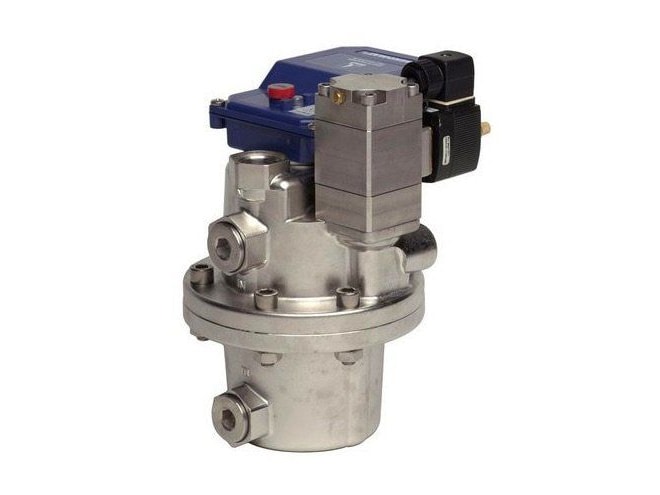

The BEKO Technologies BEKOMAT E Series Zero Loss Condensate Drain applies an integrated capacity sensor, smart electronics for volume-controlled discharge, and a proven pilot controlled solenoid valve to release condensate without the loss of compressed air, reducing energy costs and CO2 emissions. An integrated sieve eliminates the need for a Y-strainer, and the possibility of damage due to dirt or other particulates. A visual status indication is given on the drain and can be wired for remote access. The unit continuously monitors both level and function for autonomous operation.
