Overview

Features

  • 50 to 1,150 SCFM capacity
  • 1/4" to 3" NPT connection
  • 232 PSIG pressure rating
  • 1/4" BSPP drain and vent connections
  • 0.01 micron particle removal at 100% pleated depth PP
  • 35 to 120°F continuous operating temperature range
  • 257°F maximum sterilizing temperature
  • Polypropylene media material, support and end cap material
  • Positive click lock with dual silicone O-rings element to housing connection
  • Filter housing passivated and polished to grade Ra <1.6 µm
  • Aseptic EPDM filter housing seals

Description

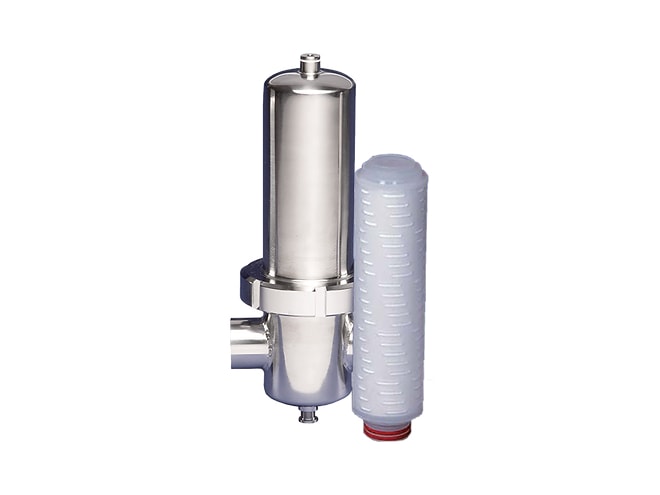

The nano-purification solutions PF Sterile Air Depth Filter is specifically designed for particulate and bacteria retention in sterile environments, and exceeds the Safe Quality Food (SQF) Air Quality Standard. It is ideally suited for process applications such as food and beverage facilities with wash down requirements. The non-woven depth pleated polypropylene elements incorporate a positive double O-ring click-lock seal, and the housing is fabricated from polished 1.4301 quality 304 stainless steel for critical air and gas applications.

Applications

  • Food processing
  • Beverage
  • Dairy
  • Biotechnology
  • Hospitals
  • Packaging
