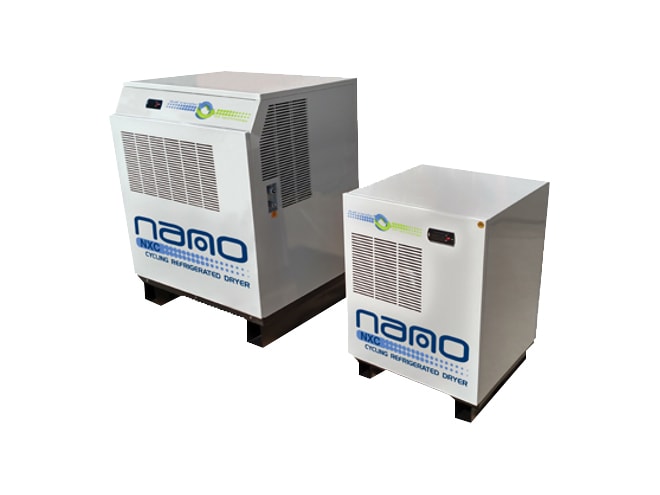

nano-purification solutions NXC Cycling Refrigerated Air Dryer

Environmentally friendly R134a or R407C refrigerant and non-toxic silica dry mass utilized in all models.

nano-purification solutions NXC Cycling Refrigerated Air Dryer

Select your options below…

Capacity

Connection

Voltage

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

List Price: $2,093.00

$1,883.70

Configured Part No. NXC 0020-115601

Manufacturer has 67 in stock. Additional processing time may apply.

Available Payment Methods

Request Quick Quote

Get Business Financing!
Payments as low as $66/mo

View Company Reviews

Highlights...

Features

20 to 2,000 SCFM capacity
1/2" to 3" NPT, 4" ANSI Flanged connection options
Voltage options:
- 115/1/60
- 230/1/60
- 460/3/60
232 PSIG pressure rating
158°F maximum inlet temperature
110°F to 112°F maximum ambient temperature, depending on refrigerant

The nano-purification solutions NXC Cycling Refrigerated Air Dryer utilizes dual transfer technology (DTT) to reduce energy expenditure, treating the compressed air according to actual air flow. In the direct transfer, cold refrigerant comes into direct contact with the compressed air through a patented copper/aluminum heat exchanger, increasing cooling method efficiency during periods of high air usage. In the indirect transfer, excess refrigerant cools down the dry thermal mass, allowing the compressor to cycle off during periods of lower compressed air consumption. This cycling feature enhances dew point performance and reduces power consumption.

A standard refrigerant gauge is located on the side of the dryer cabinet for ease of troubleshooting. A fully adjustable timer drain is standard on all models.

Spec Sheets

Nano-Purification Solutions NXC Cycling Refrigerated Air Dryer datasheet (1.4 MB)
