nano-purification solutions NMG Nitrogen Generator
Designed to produce nitrogen in-house alongside a pre-treated compressed air system.
Overview
Features
- 95 to 99.9% purity
- 100 to 200 PSIG operating pressure range
- 1/2" NPT inlet/outlet connection
- 41 to 113°F design operating temperature range
- 7 to 10 PSIG pressure drop
- F1 centrifugal water separator included
- NMD magnetic condensate drain included
- F1 1.0 and 0.01 micron coalescing filters included
- F1 AC activated carbon filter included
Description

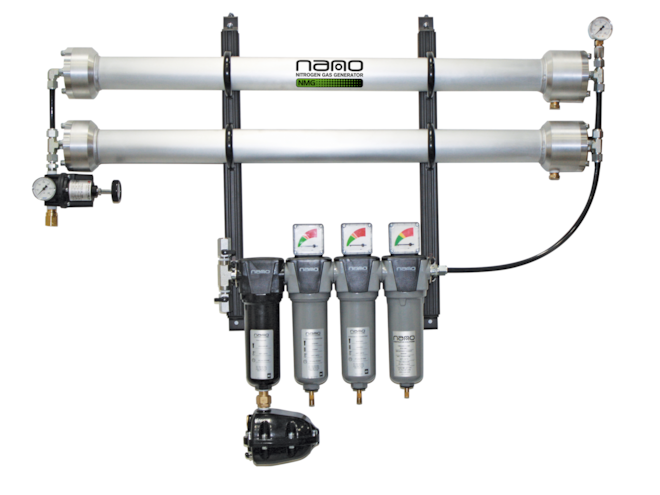

The nano-purification solutions NMG Nitrogen Generator uses rated flow to produce nitrogen purities from 95 to 99.9%, and includes an F1 centrifugal water separator, NMD magnetic condensate drain, F1 1.0 and 0.01 micron coalescing filters, and an F1 AC activated carbon filter. No moving parts are involved and no electricity is required. The unit's design provides for horizontal or vertical placement in tight spaces with wall mounting brackets included as standard. The lower air consumption and refined controls provide greater energy efficiency.
Applications
- Food packaging
- Plastics
- Chemicals
- Pharmaceuticals
- Atmosphere blanketing
