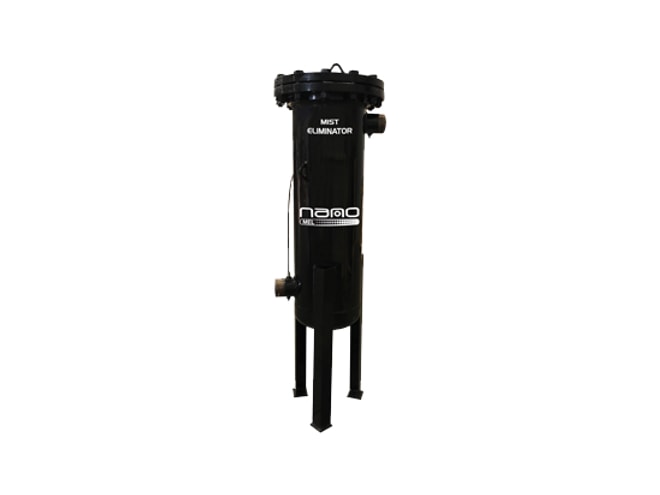

nano-purification solutions MEL Mist Eliminator

99.97% efficient microfiber coalescing media with particle removal down to 0.3 micron including coalesced liquid water and oil.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $5,084.10
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 250 to 3,000 SCFM capacity
  • Connections:
    • 2 to 3" NPT (250 to 1,000 SCFM)
    • 3 to 4" Flange (1,250 to 3,000 SCFM)
  • 35 to 248°F design operating temperature range
  • 20 to 150 PSIG operating temperature range
  • Less than 0.5 PSIG initial differential pressure
  • 1.0 PSID recommended pressure differential for element change
  • ISO Class 2.7.3 air quality class (solids, water, oil)

The nano-purification solutions MEL Mist Eliminator achieves the same efficiency filtration as conventional downstream filters with a service life of 10+ years. It is typically located after an oil lubricated compressor to provide optimum protection in the result of a catastrophic failure of the compressor's air/oil separator. The robust pressure vessel is built in accordance with the latest edition of VIII Div 1 ASME Code. The unit has an external powder epoxy coat as standard, and a zero air loss drain is shipped loose. It can be serviced without inlet & outlet disruption. Drain vent ports and a safety valve port are included as standard.

Applications

  • Industrial
  • Automotive
  • Food & beverage

Manufacturer Stock

Part Number Price Available
MEL 0250
Show Configuration
$5,084.10 2 in stock
MEL 0500
Show Configuration
$5,736.60 1 in stock
MEL 1250
Show Configuration
$9,458.10 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
