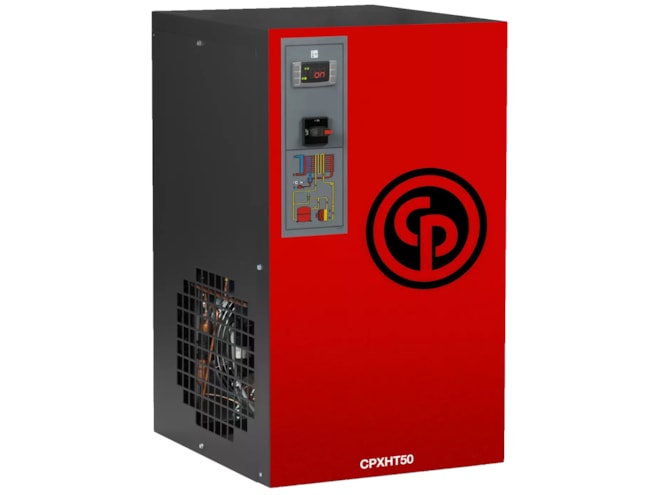

Chicago Pneumatic CPXHT Series Refrigerated Air Dryer

Ideal for piston compressors that lack an aftercooler or where air is over 130°F.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $2,092.77
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...

Features

  • 25 to 125 CFM capacity
  • 232 PSIG maximum pressure
  • 115/1/60 voltage
  • 3/4" or 1" NPT connection
  • R-134a or R-404A refrigerant
  • Options available for compressors ranging from 5 to 30 HP

The Chicago Pneumatic CPXHT Series Refrigerated Air Dryer has a maximum inlet temperature of 180˚F, meaning no aftercooler is required. The unit incorporates a refrigerated air dryer, moisture separator, and electronic water drain. It is equipped with a stainless steel/copper heat exchanger. The unit eliminates water, oil, and dirt from air systems, preventing damage to tools and cylinders and increasing their longevity. The unit is also designed to prevent "fisheye" paint splotches, reduce operation downtime, and eliminate airline purging.

All models are equipped with a smart condensate discharger. Each drain is sized for each model, assuring reliability in discharging water without compressed air. In case of malfunction, an alarm signal is displayed.

Manufacturer Stock

This stock is typically available to ship in 1 - 3 working days

Part Number Price Available
4102001903
Show Configuration
$5,231.50 2 in stock
4102001904
Show Configuration
$5,679.30 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1 to 2 days". Click here to select options
